一、k8s组件配置¶

所有节点创建相关目录

$ mkdir -p /etc/kubernetes/manifests/ /etc/systemd/system/kubelet.service.d /var/lib/kubelet /var/log/kubernetes

1.1 Apiserver¶

1.Master01节点的配置如下

$ vim /usr/lib/systemd/system/kube-apiserver.service
[Unit]
Description=Kubernetes API Server
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-apiserver \
      --v=2  \
      --logtostderr=true  \
      --allow-privileged=true  \
      --bind-address=0.0.0.0  \
      --secure-port=6443  \
      --insecure-port=0  \
      --advertise-address=192.168.1.31 \
      --service-cluster-ip-range=10.0.0.0/16  \
      --service-node-port-range=30000-32767  \
      --etcd-servers=https://192.168.1.31:2379,https://192.168.1.32:2379,https://192.168.1.33:2379 \
      --etcd-cafile=/etc/etcd/ssl/etcd-ca.pem  \
      --etcd-certfile=/etc/etcd/ssl/etcd.pem  \
      --etcd-keyfile=/etc/etcd/ssl/etcd-key.pem  \
      --client-ca-file=/etc/kubernetes/pki/ca.pem  \
      --tls-cert-file=/etc/kubernetes/pki/apiserver.pem  \
      --tls-private-key-file=/etc/kubernetes/pki/apiserver-key.pem  \
      --kubelet-client-certificate=/etc/kubernetes/pki/apiserver.pem  \
      --kubelet-client-key=/etc/kubernetes/pki/apiserver-key.pem  \
      --service-account-key-file=/etc/kubernetes/pki/sa.pub  \
      --service-account-signing-key-file=/etc/kubernetes/pki/sa.key  \
      --service-account-issuer=https://kubernetes.default.svc.cluster.local \
      --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname  \
      --enable-admission-plugins=NamespaceLifecycle,LimitRanger,ServiceAccount,DefaultStorageClass,DefaultTolerationSeconds,NodeRestriction,ResourceQuota  \
      --authorization-mode=Node,RBAC  \
      --enable-bootstrap-token-auth=true  \
      --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.pem  \
      --proxy-client-cert-file=/etc/kubernetes/pki/front-proxy-client.pem  \
      --proxy-client-key-file=/etc/kubernetes/pki/front-proxy-client-key.pem  \
      --requestheader-allowed-names=aggregator  \
      --requestheader-group-headers=X-Remote-Group  \
      --requestheader-extra-headers-prefix=X-Remote-Extra-  \
      --requestheader-username-headers=X-Remote-User
      # --token-auth-file=/etc/kubernetes/token.csv

Restart=on-failure
RestartSec=10s
LimitNOFILE=65535

[Install]
WantedBy=multi-user.target

2.Master02节点的配置如下

$ vim /usr/lib/systemd/system/kube-apiserver.service
[Unit]
Description=Kubernetes API Server
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-apiserver \
      --v=2  \
      --logtostderr=true  \
      --allow-privileged=true  \
      --bind-address=0.0.0.0  \
      --secure-port=6443  \
      --insecure-port=0  \
      --advertise-address=192.168.1.32 \
      --service-cluster-ip-range=10.0.0.0/16  \
      --service-node-port-range=30000-32767  \
      --etcd-servers=https://192.168.1.31:2379,https://192.168.1.32:2379,https://192.168.1.33:2379 \
      --etcd-cafile=/etc/etcd/ssl/etcd-ca.pem  \
      --etcd-certfile=/etc/etcd/ssl/etcd.pem  \
      --etcd-keyfile=/etc/etcd/ssl/etcd-key.pem  \
      --client-ca-file=/etc/kubernetes/pki/ca.pem  \
      --tls-cert-file=/etc/kubernetes/pki/apiserver.pem  \
      --tls-private-key-file=/etc/kubernetes/pki/apiserver-key.pem  \
      --kubelet-client-certificate=/etc/kubernetes/pki/apiserver.pem  \
      --kubelet-client-key=/etc/kubernetes/pki/apiserver-key.pem  \
      --service-account-key-file=/etc/kubernetes/pki/sa.pub  \
      --service-account-signing-key-file=/etc/kubernetes/pki/sa.key  \
      --service-account-issuer=https://kubernetes.default.svc.cluster.local \
      --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname  \
      --enable-admission-plugins=NamespaceLifecycle,LimitRanger,ServiceAccount,DefaultStorageClass,DefaultTolerationSeconds,NodeRestriction,ResourceQuota  \
      --authorization-mode=Node,RBAC  \
      --enable-bootstrap-token-auth=true  \
      --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.pem  \
      --proxy-client-cert-file=/etc/kubernetes/pki/front-proxy-client.pem  \
      --proxy-client-key-file=/etc/kubernetes/pki/front-proxy-client-key.pem  \
      --requestheader-allowed-names=aggregator  \
      --requestheader-group-headers=X-Remote-Group  \
      --requestheader-extra-headers-prefix=X-Remote-Extra-  \
      --requestheader-username-headers=X-Remote-User
      # --token-auth-file=/etc/kubernetes/token.csv

Restart=on-failure
RestartSec=10s
LimitNOFILE=65535

[Install]
WantedBy=multi-user.target

3.Master03节点的配置如下

$ vim  /usr/lib/systemd/system/kube-apiserver.service
[Unit]
Description=Kubernetes API Server
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-apiserver \
      --v=2  \
      --logtostderr=true  \
      --allow-privileged=true  \
      --bind-address=0.0.0.0  \
      --secure-port=6443  \
      --insecure-port=0  \
      --advertise-address=192.168.1.33 \
      --service-cluster-ip-range=10.0.0.0/16  \
      --service-node-port-range=30000-32767  \
      --etcd-servers=https://192.168.1.31:2379,https://192.168.1.32:2379,https://192.168.1.33:2379 \
      --etcd-cafile=/etc/etcd/ssl/etcd-ca.pem  \
      --etcd-certfile=/etc/etcd/ssl/etcd.pem  \
      --etcd-keyfile=/etc/etcd/ssl/etcd-key.pem  \
      --client-ca-file=/etc/kubernetes/pki/ca.pem  \
      --tls-cert-file=/etc/kubernetes/pki/apiserver.pem  \
      --tls-private-key-file=/etc/kubernetes/pki/apiserver-key.pem  \
      --kubelet-client-certificate=/etc/kubernetes/pki/apiserver.pem  \
      --kubelet-client-key=/etc/kubernetes/pki/apiserver-key.pem  \
      --service-account-key-file=/etc/kubernetes/pki/sa.pub  \
      --service-account-signing-key-file=/etc/kubernetes/pki/sa.key  \
      --service-account-issuer=https://kubernetes.default.svc.cluster.local \
      --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname  \
      --enable-admission-plugins=NamespaceLifecycle,LimitRanger,ServiceAccount,DefaultStorageClass,DefaultTolerationSeconds,NodeRestriction,ResourceQuota  \
      --authorization-mode=Node,RBAC  \
      --enable-bootstrap-token-auth=true  \
      --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.pem  \
      --proxy-client-cert-file=/etc/kubernetes/pki/front-proxy-client.pem  \
      --proxy-client-key-file=/etc/kubernetes/pki/front-proxy-client-key.pem  \
      --requestheader-allowed-names=aggregator  \
      --requestheader-group-headers=X-Remote-Group  \
      --requestheader-extra-headers-prefix=X-Remote-Extra-  \
      --requestheader-username-headers=X-Remote-User
      # --token-auth-file=/etc/kubernetes/token.csv

Restart=on-failure
RestartSec=10s
LimitNOFILE=65535

[Install]
WantedBy=multi-user.target

4.所有Master节点开启kube-apiserver并检测kube-server状态

$ systemctl daemon-reload && systemctl enable --now kube-apiserver
$ systemctl status kube-apiserver

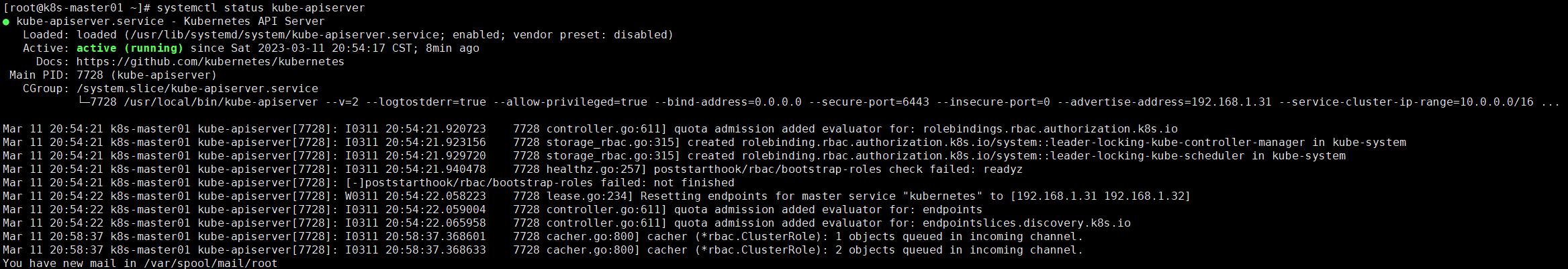

查看kube-apiserver状态

1.2 ControllerManager¶

1.所有Master节点配置kube-controller-manager service

$ vim /usr/lib/systemd/system/kube-controller-manager.service
[Unit]
Description=Kubernetes Controller Manager
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-controller-manager \
      --v=2 \
      --logtostderr=true \
      --address=127.0.0.1 \
      --root-ca-file=/etc/kubernetes/pki/ca.pem \
      --cluster-signing-cert-file=/etc/kubernetes/pki/ca.pem \
      --cluster-signing-key-file=/etc/kubernetes/pki/ca-key.pem \
      --service-account-private-key-file=/etc/kubernetes/pki/sa.key \
      --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig \
      --leader-elect=true \
      --use-service-account-credentials=true \
      --node-monitor-grace-period=40s \
      --node-monitor-period=5s \
      --pod-eviction-timeout=2m0s \
      --controllers=*,bootstrapsigner,tokencleaner \
      --allocate-node-cidrs=true \
      --cluster-cidr=172.16.0.0/12 \
      --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.pem \
      --node-cidr-mask-size=24

Restart=always
RestartSec=10s

[Install]
WantedBy=multi-user.target

2.所有Master节点启动kube-controller-manager

$ systemctl daemon-reload
$ systemctl enable --now kube-controller-manager
$ systemctl enable --now kube-controller-manager

3.所有Master节点查看ControllerManager启动状态

$ systemctl  status kube-controller-manager

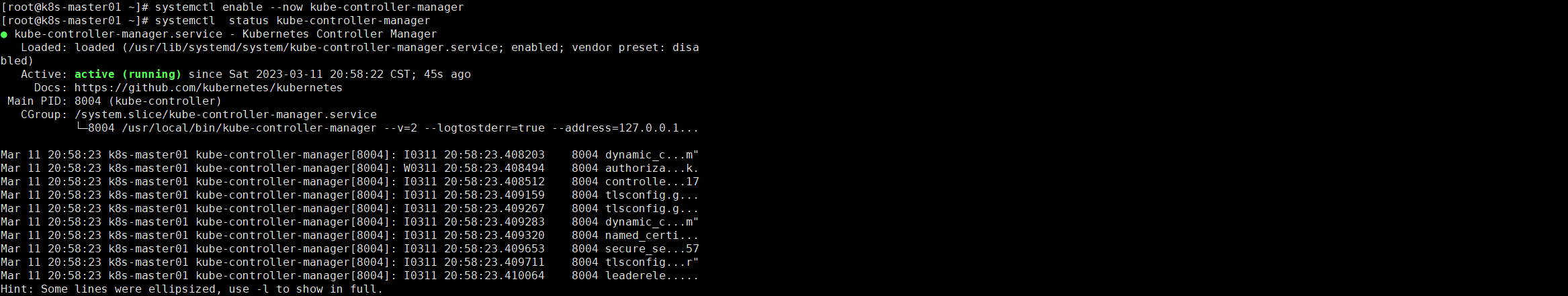

查看ControllerManager启动状态

1.3 Scheduler¶

1.所有Master节点配置kube-scheduler service

$ vim /usr/lib/systemd/system/kube-scheduler.service
[Unit]
Description=Kubernetes Scheduler
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-scheduler \
      --v=2 \
      --logtostderr=true \
      --address=127.0.0.1 \
      --leader-elect=true \
      --kubeconfig=/etc/kubernetes/scheduler.kubeconfig

Restart=always
RestartSec=10s

[Install]
WantedBy=multi-user.target

2.所有Master节点启动Scheduler

$ systemctl daemon-reload
$ systemctl enable --now kube-scheduler

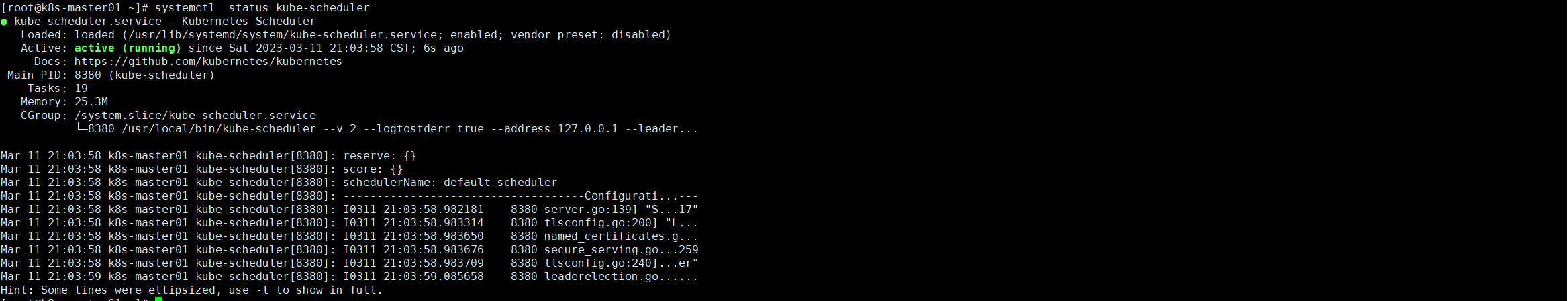

3.所有Master节点查看Scheduler启动状态

$ systemctl  status kube-scheduler

二、TLS Bootstrapping配置¶

1.在Master01节点上创建bootstrap

$ cd /root/k8s-ha-install/bootstrap
$ kubectl config set-cluster kubernetes     --certificate-authority=/etc/kubernetes/pki/ca.pem     --embed-certs=true     --server=https://192.168.1.38:8443     --kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig
$ kubectl config set-credentials tls-bootstrap-token-user     --token=c8ad9c.2e4d610cf3e7426e --kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig
$ kubectl config set-context tls-bootstrap-token-user@kubernetes     --cluster=kubernetes     --user=tls-bootstrap-token-user     --kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig
$ kubectl config use-context tls-bootstrap-token-user@kubernetes     --kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig

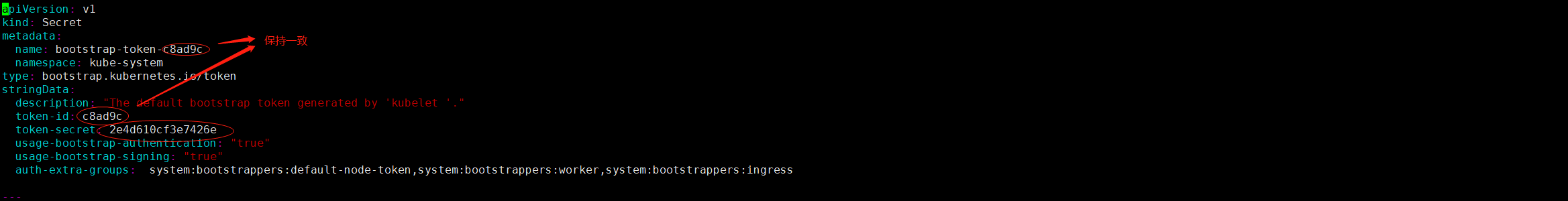

注意:如果要修改上面c8ad9c.2e4d610cf3e7426e需要同步修改bootstrap.secret.yaml的token-id和token-secret

2.在Master01节点上拷贝文件admin.kubeconfig

$ mkdir -p /root/.kube ; cp /etc/kubernetes/admin.kubeconfig /root/.kube/config

3.在Master01节点上查询集群状态

$ kubectl get cs
Warning: v1 ComponentStatus is deprecated in v1.19+
NAME                 STATUS    MESSAGE                         ERROR
controller-manager   Healthy   ok
scheduler            Healthy   ok
etcd-2               Healthy   {"health":"true","reason":""}
etcd-0               Healthy   {"health":"true","reason":""}
etcd-1               Healthy   {"health":"true","reason":""}

4.在Master01节点上创建bootstrap

$ cd /root/k8s-ha-install/bootstrap
$ kubectl create -f bootstrap.secret.yaml

三、Node节点配置¶

3.1 复制证书¶

1.在Master01节点上复制证书至Node节点

$ cd /etc/kubernetes/
$ for NODE in k8s-master02 k8s-master03 k8s-node01 k8s-node02; do
     ssh $NODE mkdir -p /etc/kubernetes/pki
     for FILE in pki/ca.pem pki/ca-key.pem pki/front-proxy-ca.pem bootstrap-kubelet.kubeconfig; do
       scp /etc/kubernetes/$FILE $NODE:/etc/kubernetes/${FILE}
 done
 done

3.2 kubelet配置¶

1.所有节点创建相关目录

$ mkdir -p /var/lib/kubelet /var/log/kubernetes /etc/systemd/system/kubelet.service.d /etc/kubernetes/manifests/

2.所有节点配置kubelet service

$ vim  /usr/lib/systemd/system/kubelet.service
[Unit]
Description=Kubernetes Kubelet
Documentation=https://github.com/kubernetes/kubernetes

[Service]
ExecStart=/usr/local/bin/kubelet

Restart=always
StartLimitInterval=0
RestartSec=10

[Install]
WantedBy=multi-user.target

3.所有节点配置kubelet service的配置文件

$ vim /etc/systemd/system/kubelet.service.d/10-kubelet.conf
[Service]
Environment="KUBELET_KUBECONFIG_ARGS=--bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig --kubeconfig=/etc/kubernetes/kubelet.kubeconfig"
Environment="KUBELET_SYSTEM_ARGS=--network-plugin=cni --cni-conf-dir=/etc/cni/net.d --cni-bin-dir=/opt/cni/bin --container-runtime=remote --runtime-request-timeout=15m --container-runtime-endpoint=unix:///run/containerd/containerd.sock --cgroup-driver=systemd"
Environment="KUBELET_CONFIG_ARGS=--config=/etc/kubernetes/kubelet-conf.yml"
Environment="KUBELET_EXTRA_ARGS=--node-labels=node.kubernetes.io/node='' "
ExecStart=
ExecStart=/usr/local/bin/kubelet $KUBELET_KUBECONFIG_ARGS $KUBELET_CONFIG_ARGS $KUBELET_SYSTEM_ARGS $KUBELET_EXTRA_ARGS

4.所有节点创建kubelet的配置文件

$ vim /etc/kubernetes/kubelet-conf.yml
apiVersion: kubelet.config.k8s.io/v1beta1
kind: KubeletConfiguration
address: 0.0.0.0
port: 10250
readOnlyPort: 10255
authentication:
  anonymous:
    enabled: false
  webhook:
    cacheTTL: 2m0s
    enabled: true
  x509:
    clientCAFile: /etc/kubernetes/pki/ca.pem
authorization:
  mode: Webhook
  webhook:
    cacheAuthorizedTTL: 5m0s
    cacheUnauthorizedTTL: 30s
cgroupDriver: systemd
cgroupsPerQOS: true
clusterDNS:
- 10.0.0.10
clusterDomain: cluster.local
containerLogMaxFiles: 5
containerLogMaxSize: 10Mi
contentType: application/vnd.kubernetes.protobuf
cpuCFSQuota: true
cpuManagerPolicy: none
cpuManagerReconcilePeriod: 10s
enableControllerAttachDetach: true
enableDebuggingHandlers: true
enforceNodeAllocatable:
- pods
eventBurst: 10
eventRecordQPS: 5
evictionHard:
  imagefs.available: 15%
  memory.available: 100Mi
  nodefs.available: 10%
  nodefs.inodesFree: 5%
evictionPressureTransitionPeriod: 5m0s
failSwapOn: true
fileCheckFrequency: 20s
hairpinMode: promiscuous-bridge
healthzBindAddress: 127.0.0.1
healthzPort: 10248
httpCheckFrequency: 20s
imageGCHighThresholdPercent: 85
imageGCLowThresholdPercent: 80
imageMinimumGCAge: 2m0s
iptablesDropBit: 15
iptablesMasqueradeBit: 14
kubeAPIBurst: 10
kubeAPIQPS: 5
makeIPTablesUtilChains: true
maxOpenFiles: 1000000
maxPods: 110
nodeStatusUpdateFrequency: 10s
oomScoreAdj: -999
podPidsLimit: -1
registryBurst: 10
registryPullQPS: 5
resolvConf: /etc/resolv.conf
rotateCertificates: true
runtimeRequestTimeout: 2m0s
serializeImagePulls: true
staticPodPath: /etc/kubernetes/manifests
streamingConnectionIdleTimeout: 4h0m0s
syncFrequency: 1m0s
volumeStatsAggPeriod: 1m0s

5.所有节点启动kubelet

$ systemctl daemon-reload
$ systemctl enable --now kubelet

6.所有节点查看集群状态

$ kubectl get node
NAME           STATUS     ROLES    AGE   VERSION
k8s-master01   NotReady   <none>   1s    v1.23.17
k8s-master02   NotReady   <none>   1s    v1.23.17
k8s-master03   NotReady   <none>   1s    v1.23.17
k8s-node01     NotReady   <none>   1s    v1.23.17
k8s-node02     NotReady   <none>   1s    v1.23.17

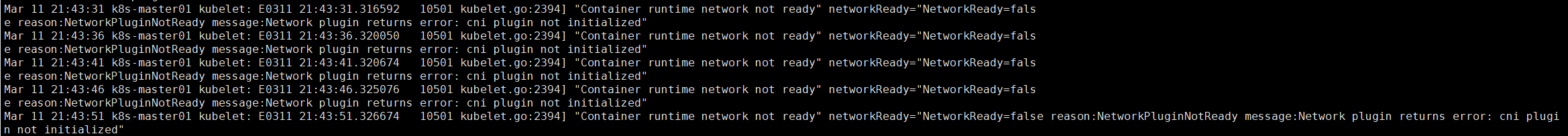

7.所有节点查看系统日志是否有报错信息

$ tail -f /var/log/messages

查看系统日志是否有报错信息

注意:上面报错日志是因为没安装calico，暂时不用处理！

3.3 kube-proxy配置¶

1.在Master01节点上生成kube-proxy.kubeconfig文件

$ cd /root/k8s-ha-install
$ kubectl -n kube-system create serviceaccount kube-proxy

kubectl create clusterrolebinding system:kube-proxy         --clusterrole system:node-proxier         --serviceaccount kube-system:kube-proxy

SECRET=$(kubectl -n kube-system get sa/kube-proxy \
    --output=jsonpath='{.secrets[0].name}')

JWT_TOKEN=$(kubectl -n kube-system get secret/$SECRET \
--output=jsonpath='{.data.token}' | base64 -d)

PKI_DIR=/etc/kubernetes/pki
K8S_DIR=/etc/kubernetes

kubectl config set-cluster kubernetes     --certificate-authority=/etc/kubernetes/pki/ca.pem     --embed-certs=true     --server=https://192.168.1.38:8443     --kubeconfig=${K8S_DIR}/kube-proxy.kubeconfig

kubectl config set-credentials kubernetes     --token=${JWT_TOKEN}     --kubeconfig=/etc/kubernetes/kube-proxy.kubeconfig

kubectl config set-context kubernetes     --cluster=kubernetes     --user=kubernetes     --kubeconfig=/etc/kubernetes/kube-proxy.kubeconfig

kubectl config use-context kubernetes     --kubeconfig=/etc/kubernetes/kube-proxy.kubeconfig

2.在Master01节点上将kubeconfig发送至其他节点

(1)在Master01节点上将kubeconfig发送至其他Master节点

for NODE in k8s-master02 k8s-master03; do
     scp /etc/kubernetes/kube-proxy.kubeconfig  $NODE:/etc/kubernetes/kube-proxy.kubeconfig
 done

(2)在Master01节点上将kubeconfig发送至其他Node节点

for NODE in k8s-node01 k8s-node02; do
     scp /etc/kubernetes/kube-proxy.kubeconfig $NODE:/etc/kubernetes/kube-proxy.kubeconfig
 done

3.所有节点添加kube-proxy的配置和service文件

$ vim /usr/lib/systemd/system/kube-proxy.service
[Unit]
Description=Kubernetes Kube Proxy
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-proxy \
  --config=/etc/kubernetes/kube-proxy.yaml \
  --v=2

Restart=always
RestartSec=10s

[Install]
WantedBy=multi-user.target

$ vim /etc/kubernetes/kube-proxy.yaml
apiVersion: kubeproxy.config.k8s.io/v1alpha1
bindAddress: 0.0.0.0
clientConnection:
  acceptContentTypes: ""
  burst: 10
  contentType: application/vnd.kubernetes.protobuf
  kubeconfig: /etc/kubernetes/kube-proxy.kubeconfig
  qps: 5
clusterCIDR: 172.16.0.0/12
configSyncPeriod: 15m0s
conntrack:
  max: null
  maxPerCore: 32768
  min: 131072
  tcpCloseWaitTimeout: 1h0m0s
  tcpEstablishedTimeout: 24h0m0s
enableProfiling: false
healthzBindAddress: 0.0.0.0:10256
hostnameOverride: ""
iptables:
  masqueradeAll: false
  masqueradeBit: 14
  minSyncPeriod: 0s
  syncPeriod: 30s
ipvs:
  masqueradeAll: true
  minSyncPeriod: 5s
  scheduler: "rr"
  syncPeriod: 30s
kind: KubeProxyConfiguration
metricsBindAddress: 127.0.0.1:10249
mode: "ipvs"
nodePortAddresses: null
oomScoreAdj: -999
portRange: ""
udpIdleTimeout: 250ms

4.所有节点启动kube-proxy

$ systemctl daemon-reload
$ systemctl enable --now kube-proxy

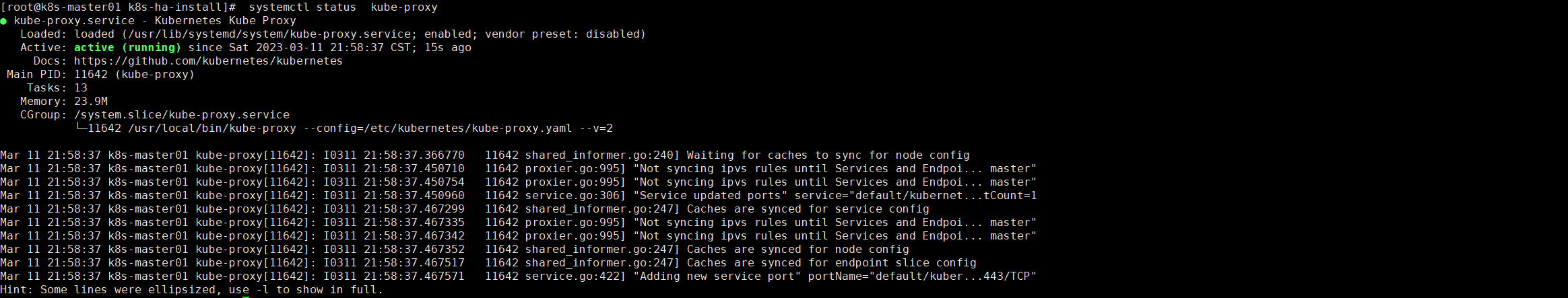

5.所有节点查看kube-proxy

$ systemctl status  kube-proxy

6.在Master01节点上查看SVC

$ kubectl get svc
NAME         TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)   AGE
kubernetes   ClusterIP   10.0.0.1     <none>        443/TCP   74m

二进制安装k8s控制面与Node节点配置
