一、基于Docker配置构建资源池¶

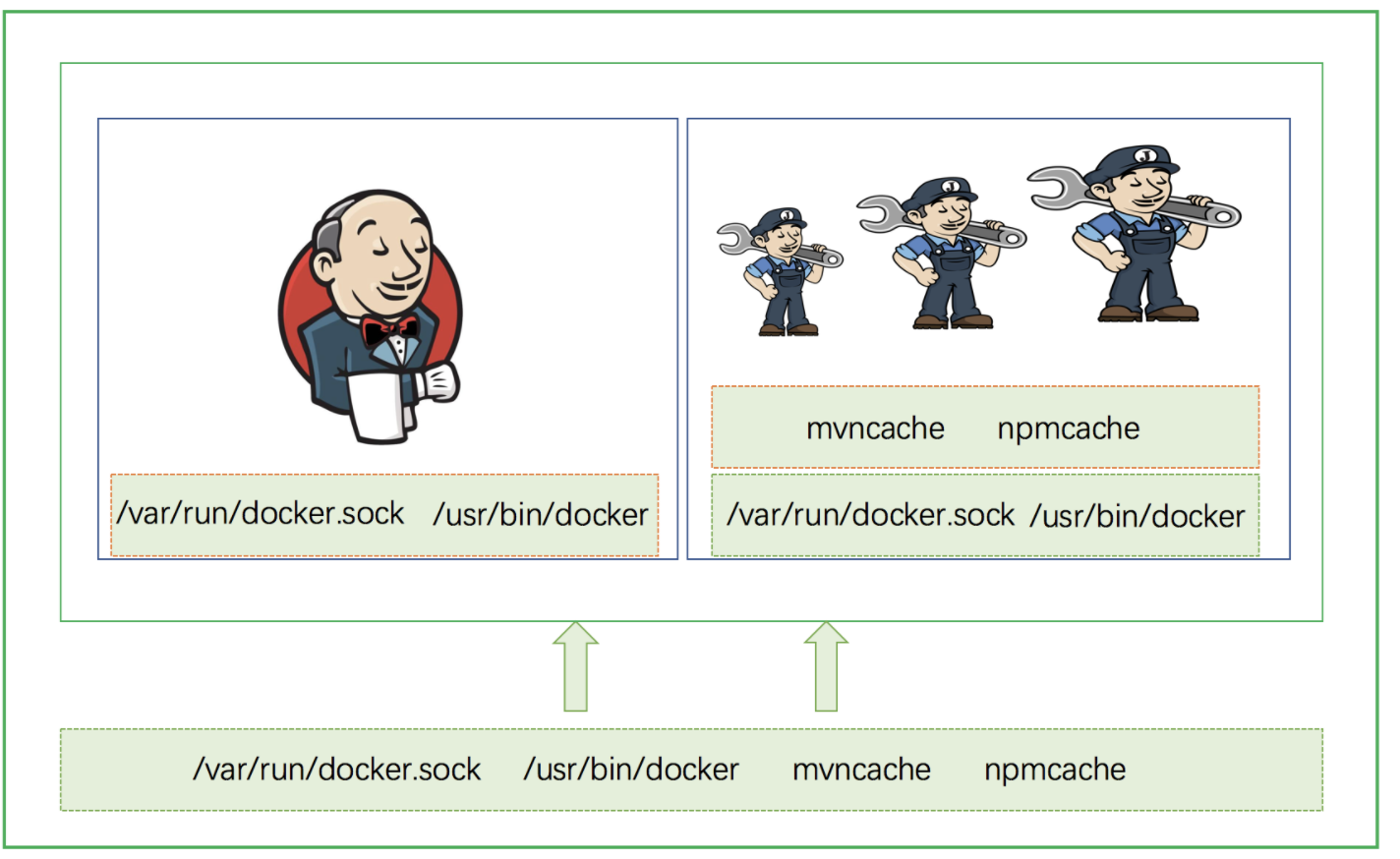

1.1 整体架构¶

Alt Image Text

1.2 Docker安装Jenkins Slave节点(静态)¶

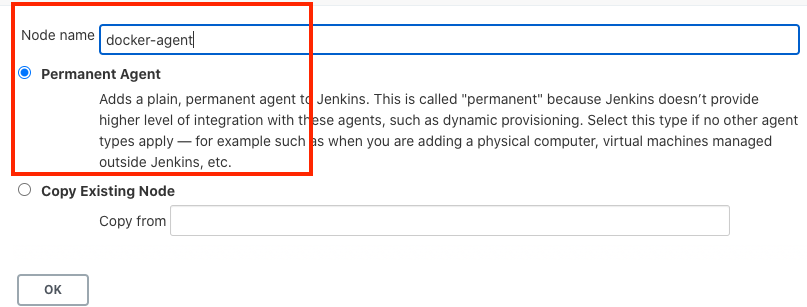

首先我们在Jenkins的节点管理中，添加节点。输入节点的名称和类型。

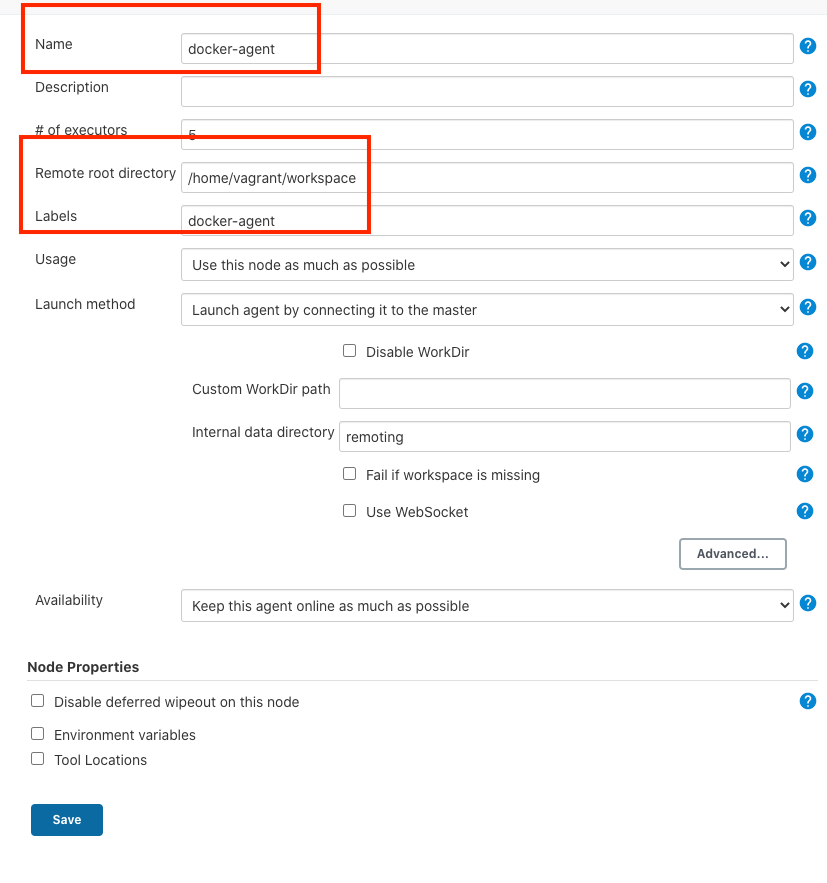

配置节点信息：自定义目录启动方式： Launch agent by connecting it to the master 。

docker-agent
# of executors: 5
/home/vagrant/workspace
Labels: docker-agent

Alt Image Text

获取JNLP方式运行slave所需要的秘钥信息。

秘钥信息获取方式,点击下载slave-agent.jnlp，打开文件，及获取秘钥信息

<jnlp codebase="http://192.168.33.11:8080/computer/docker-agent/" spec="1.0+"><information><title>Agent for docker-agent</title><vendor>Jenkins project</vendor><homepage href="https://jenkins-ci.org/"></homepage></information><security><all-permissions></all-permissions></security><resources><j2se version="1.8+"></j2se><jar href="http://192.168.33.11:8080/jnlpJars/remoting.jar"></jar></resources><application-desc main-class="hudson.remoting.jnlp.Main"><argument>857f47abd55cb5c13567f8cc8c8ddfb77c5af04260efc2436b50a8b896b522e6</argument><argument>docker-agent</argument><argument>-workDir</argument><argument>/home/vagrant/workspace</argument><argument>-internalDir</argument><argument>remoting</argument><argument>-url</argument><argument>http://192.168.33.11:8080/</argument></application-desc></jnlp>

857f47abd55cb5c13567f8cc8c8ddfb77c5af04260efc2436b50a8b896b522e6

获取jnlp slave的docker镜像: https://hub.docker.com/r/jenkins/inbound-agent/

docker pull jenkins/inbound-agent

docker run --init -itd jenkins/inbound-agent -url http://192.168.33.11:8080 857f47abd55cb5c13567f8cc8c8ddfb77c5af04260efc2436b50a8b896b522e6 docker-agent

启动slave测试，出现以下日志表示成功连接。这个部分容易出现问题，原因很可能是因为网络权限导致的。

Aug 19, 2020 12:48:11 PM hudson.remoting.jnlp.Main createEngine
INFO: Setting up agent: docker-agent
Aug 19, 2020 12:48:11 PM hudson.remoting.jnlp.Main$CuiListener <init>
INFO: Jenkins agent is running in headless mode.
Aug 19, 2020 12:48:11 PM hudson.remoting.Engine startEngine
INFO: Using Remoting version: 4.3
Aug 19, 2020 12:48:11 PM hudson.remoting.Engine startEngine
WARNING: No Working Directory. Using the legacy JAR Cache location: /home/jenkins/.jenkins/cache/jars
Aug 19, 2020 12:48:11 PM hudson.remoting.jnlp.Main$CuiListener status
INFO: Locating server among [http://192.168.33.11:8080]
Aug 19, 2020 12:48:11 PM org.jenkinsci.remoting.engine.JnlpAgentEndpointResolver resolve
INFO: Remoting server accepts the following protocols: [JNLP4-connect, Ping]
Aug 19, 2020 12:48:11 PM hudson.remoting.jnlp.Main$CuiListener status
INFO: Agent discovery successful
  Agent address: 192.168.33.11
  Agent port:    50000
  Identity:      50:9b:15:1c:3b:3f:ab:bf:86:0b:82:fb:56:56:e5:f6
Aug 19, 2020 12:48:11 PM hudson.remoting.jnlp.Main$CuiListener status
INFO: Handshaking
Aug 19, 2020 12:48:11 PM hudson.remoting.jnlp.Main$CuiListener status
INFO: Connecting to 192.168.33.11:50000
Aug 19, 2020 12:48:11 PM hudson.remoting.jnlp.Main$CuiListener status
INFO: Trying protocol: JNLP4-connect
Aug 19, 2020 12:48:12 PM hudson.remoting.jnlp.Main$CuiListener status
INFO: Remote identity confirmed: 50:9b:15:1c:3b:3f:ab:bf:86:0b:82:fb:56:56:e5:f6
Aug 19, 2020 12:48:12 PM hudson.remoting.jnlp.Main$CuiListener status
INFO: Connected

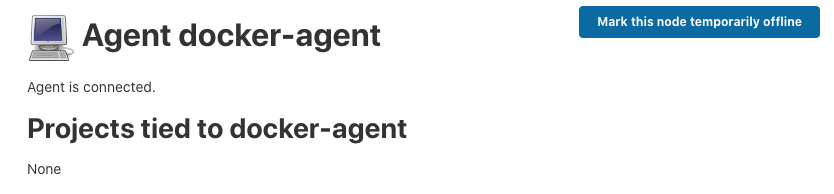

查看效果

Alt Image Text

pipeline {
    agent { node { label "docker-agent" }}
    stages {
        stage('Test') {
            steps {
                sleep(20)
                echo "Hello world!"

            }
        }
    }
}

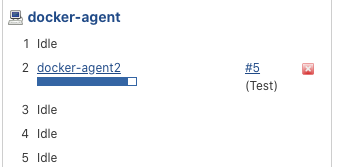

console output

Running on docker-agent in /home/vagrant/workspace/workspace/docker-agent2
...

Alt Image Text

1.3 基于Docker配置Jenkins Slave节点(动态)¶

docker插件： https://plugins.jenkins.io/docker-plugin/

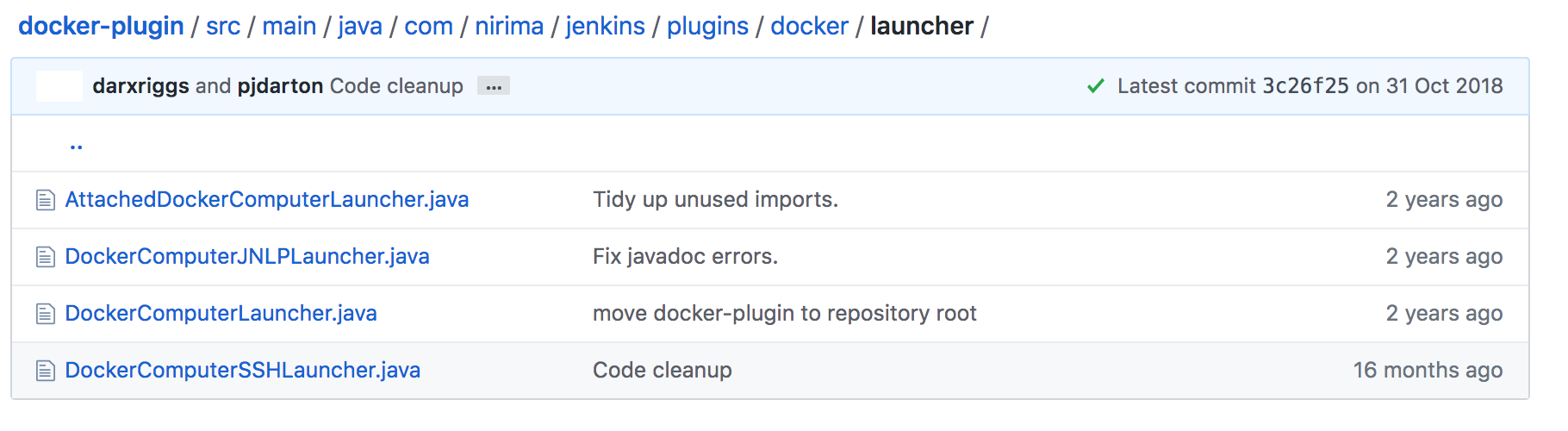

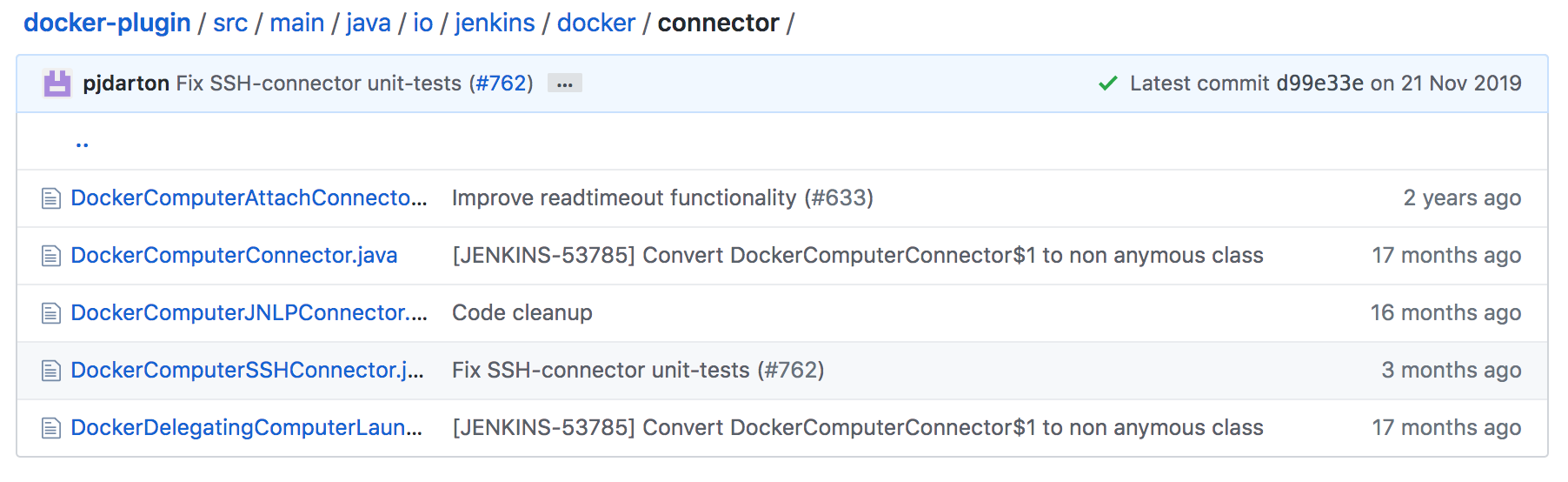

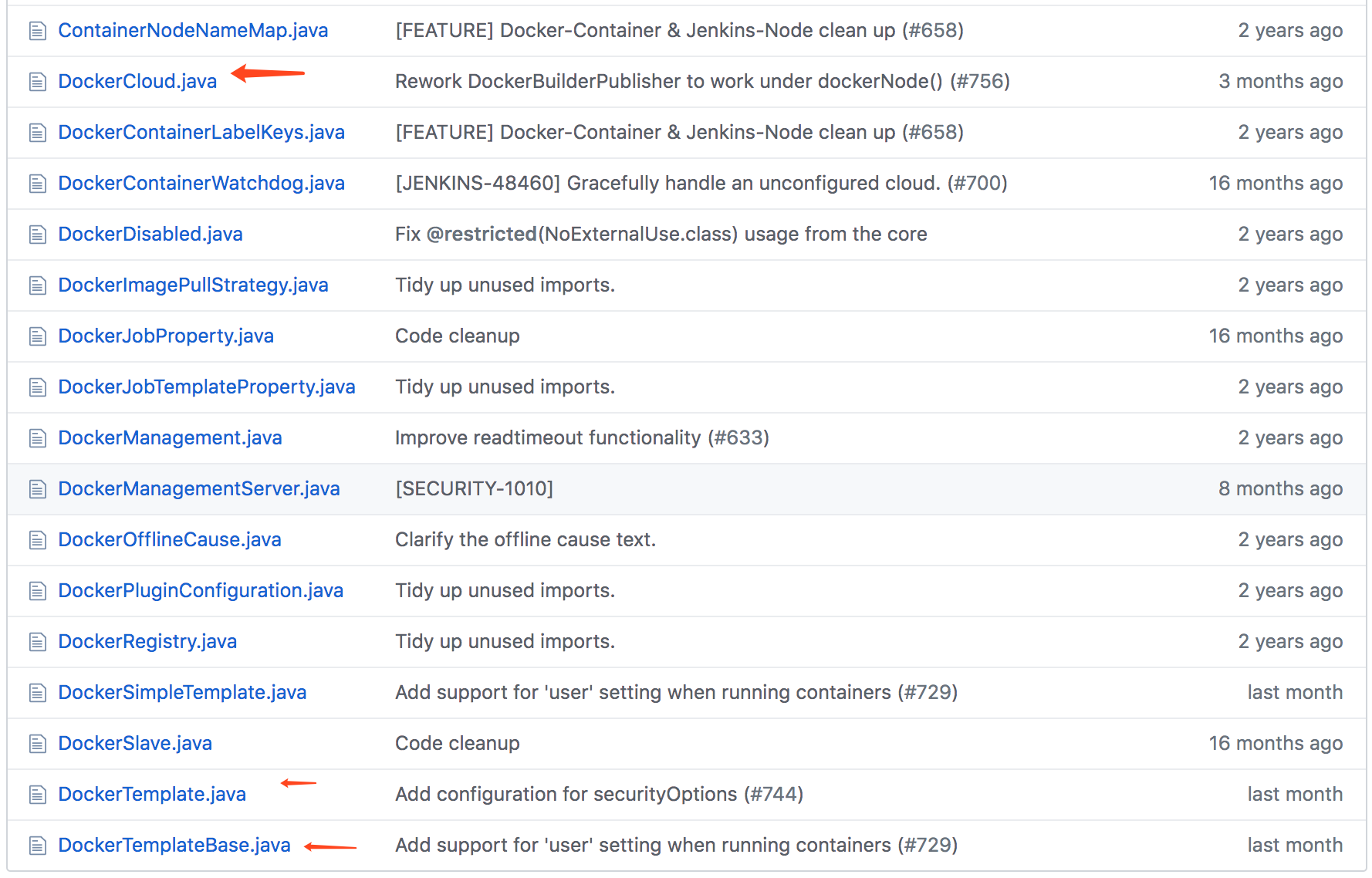

项目地址： https://github.com/jenkinsci/docker-plugin

对与Jenkins动态slave的配置，其实就是Jenkins调用Docker的接口完成的。我们需要开启Docker远程访问。

docker 开启API远程访问 (mac) 参考文档： https://juejin.im/entry/5bdf04b06fb9a049e41223f1

docker pull bobrik/socat
docker run -d -v /var/run/docker.sock:/var/run/docker.sock -p 2376:2375 bobrik/socat TCP4-LISTEN:2375,fork,reuseaddr UNIX-CONNECT:/var/run/docker.sock

如果你的docker环境是使用的centos系统，可以做如下配置。编辑/usr/lib/systemd/system/docker.service

$ sudo vim /usr/lib/systemd/system/docker.service

...
ExecStart=/usr/bin/dockerd -H tcp://0.0.0.0:2375 -H unix://var/run/docker.sock

sudo systemctl daemon-reload
sudo systemctl restart docker

当我们把上面的配置完成后，可以通过Curl命令进行基本的测试API。出现一下信息表示成功开启。

$ curl -XGET http://127.0.0.1:2375/version
{"Platform":{"Name":"Docker Engine - Community"},"Components":[{"Name":"Engine","Version":"19.03.12","Details":{"ApiVersion":"1.40","Arch":"amd64","BuildTime":"2020-06-22T15:45:28.000000000+00:00","Experimental":"false","GitCommit":"48a66213fe","GoVersion":"go1.13.10","KernelVersion":"3.10.0-957.12.2.el7.x86_64","MinAPIVersion":"1.12","Os":"linux"}},{"Name":"containerd","Version":"1.2.13","Details":{"GitCommit":"7ad184331fa3e55e52b890ea95e65ba581ae3429"}},{"Name":"runc","Version":"1.0.0-rc10","Details":{"GitCommit":"dc9208a3303feef5b3839f4323d9beb36df0a9dd"}},{"Name":"docker-init","Version":"0.18.0","Details":{"GitCommit":"fec3683"}}],"Version":"19.03.12","ApiVersion":"1.40","MinAPIVersion":"1.12","GitCommit":"48a66213fe","GoVersion":"go1.13.10","Os":"linux","Arch":"amd64","KernelVersion":"3.10.0-957.12.2.el7.x86_64","BuildTime":"2020-06-22T15:45:28.000000000+00:00"}

Jenkins配置

我们需要安装插件 Docker plugin

1.3.1 方式1：启动镜像进行构建(无需连接master)¶

dockerNode(dockerHost: 'tcp://192.168.33.11:2375', image: 'jenkins/inbound-agent') {
    // some block
    sh "sleep 50"
}

Alt Image Text

[Pipeline] Start of Pipeline
[Pipeline] dockerNode
Launching new docker node based on jenkins/inbound-agent
Pulling from jenkins/inbound-agent
Digest: sha256:9392c06eaef92cebe60deae0581541e8ef19197533cd628d792374c4a32199c9
Status: Image is up to date for jenkins/inbound-agent:latest
Waiting for node to be online ...
Node docker-0001vtsr0hv0n is online.
[Pipeline] {
[Pipeline] sh
+ sleep 50
[Pipeline] }
Terminating docker node ...
Disconnected computer for node 'docker-0001vtsr0hv0n'.
Removed Node for node 'docker-0001vtsr0hv0n'.

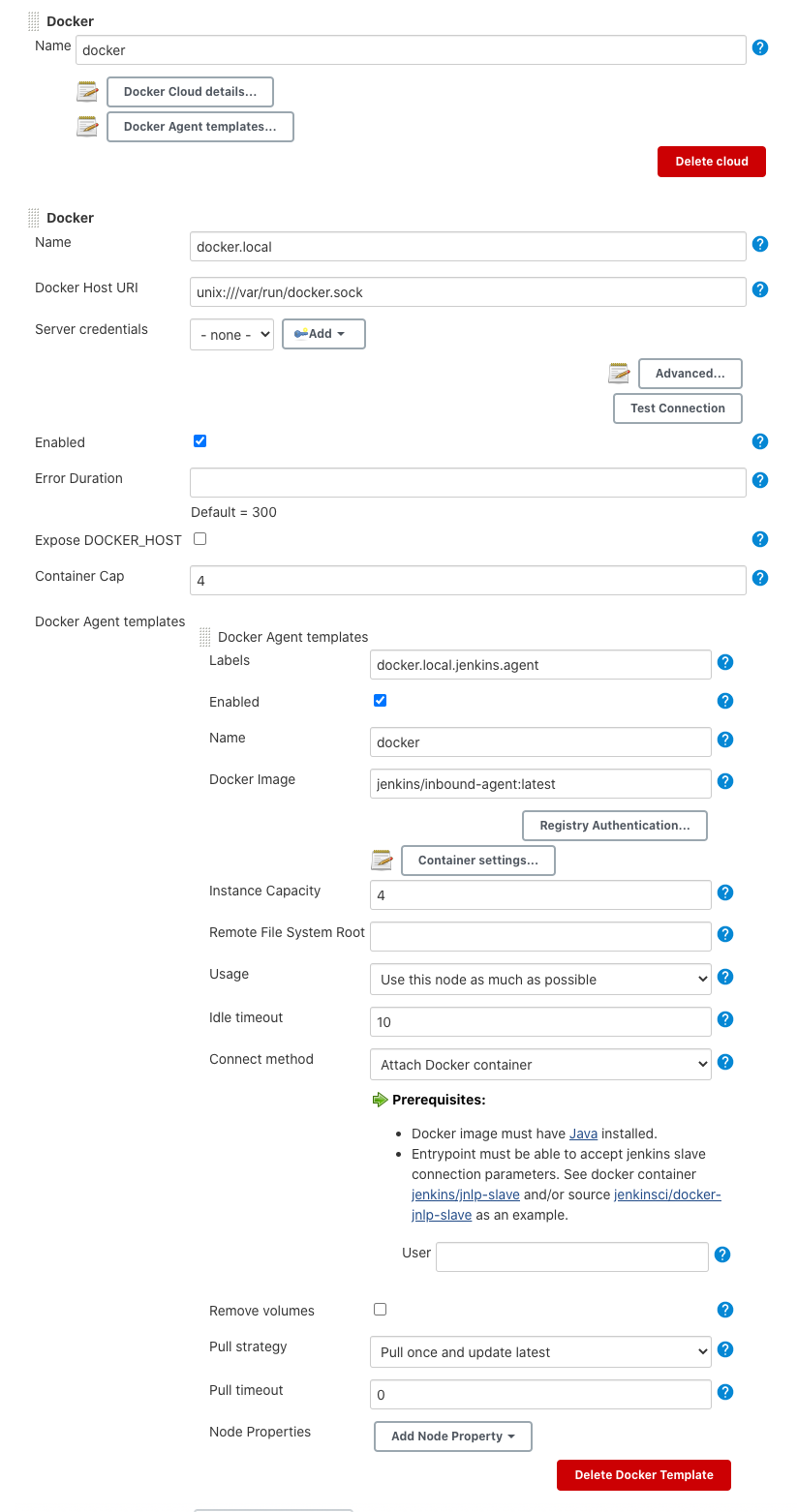

1.3.2 方式2：使用CLoud¶

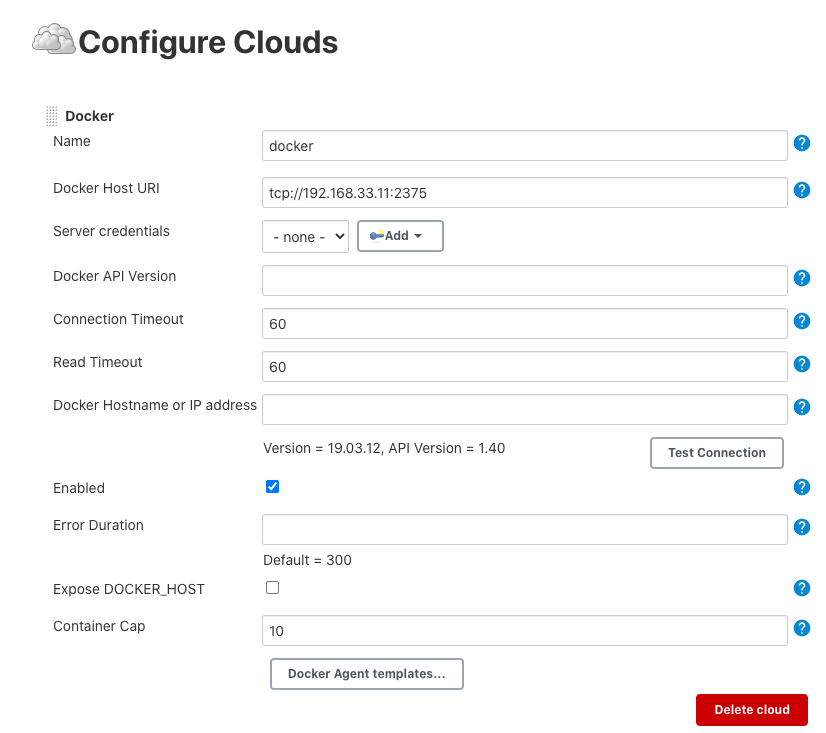

Manage Jenkins -> Manage Nodes and Clouds -> Configure Clouds

Docker Cloud details

Docker Host URI Docker主机信息(需要开启Docker配置)
- tcp://192.168.33.11:2375
- unix:///var/run/docker.sock
Connection Timeout 连接超时时间
Read Timeout 读操作超时时间（调大些，容易出现超时的情况）
Enabled 是否启用？默认否
Error Duration 错误的持续时间默认300 5分钟
Container Cap 容器数量负值或零，或2147483647都意味着“无限制” ,默认值100。
- 10

Alt Image Text

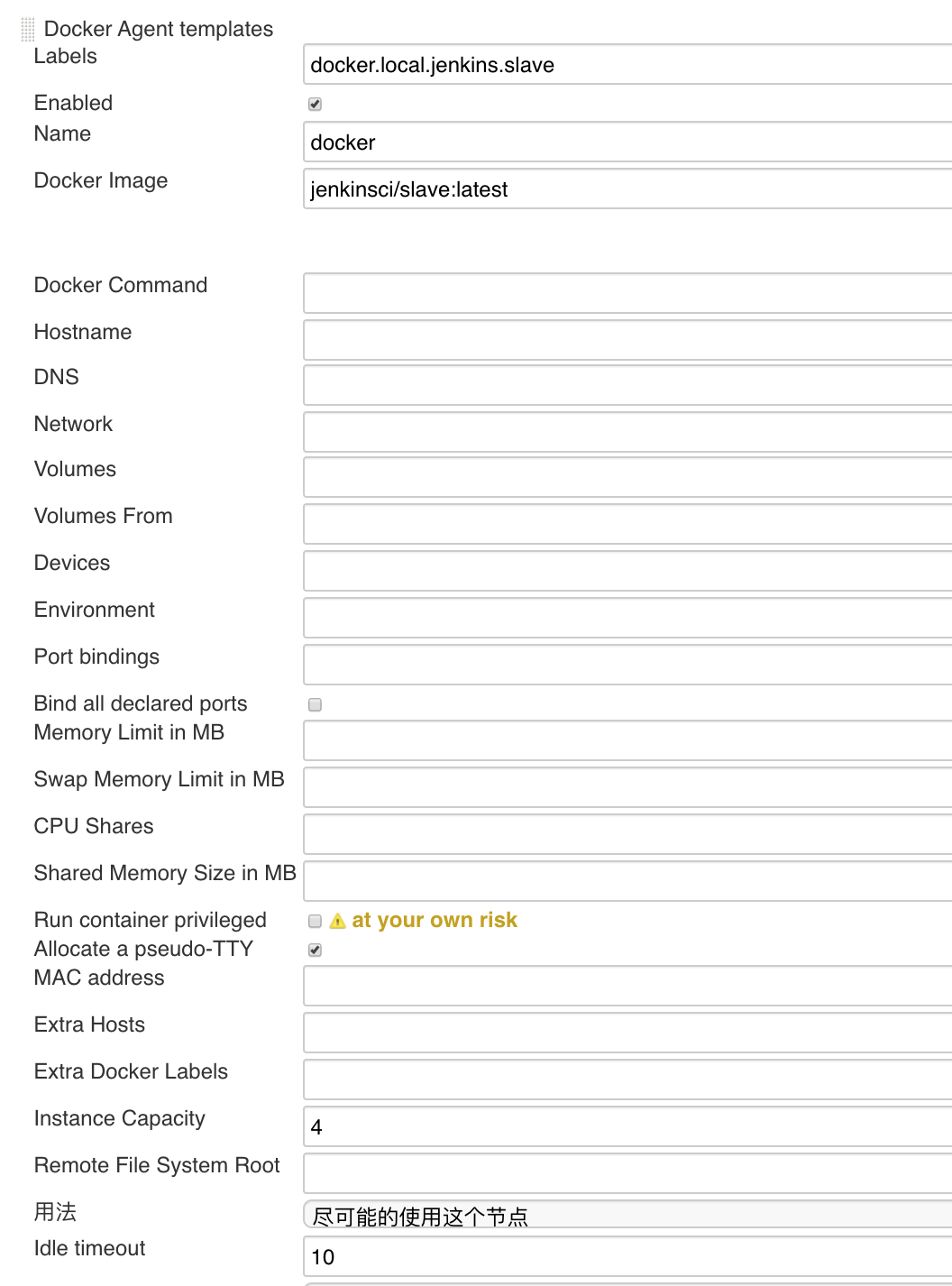

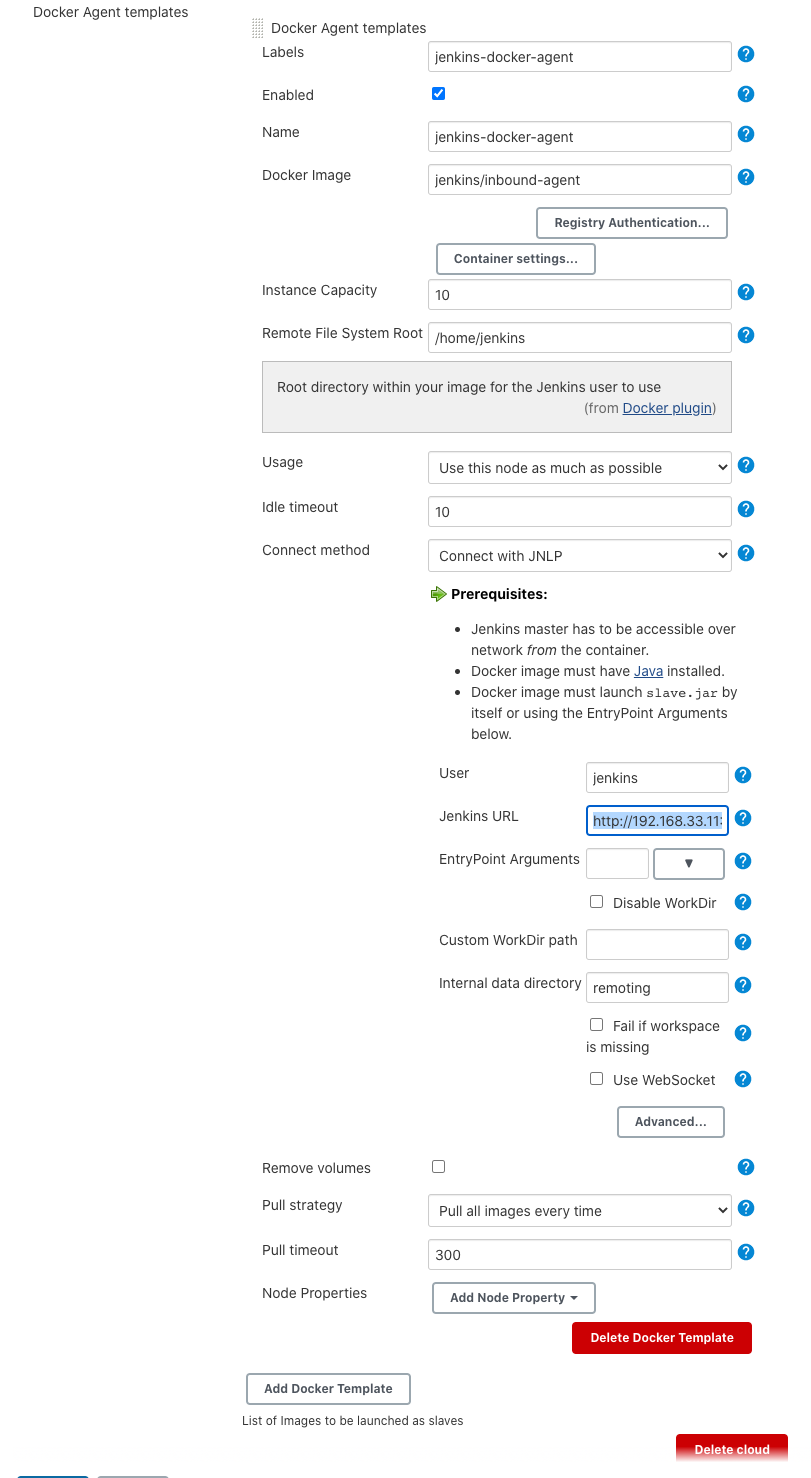

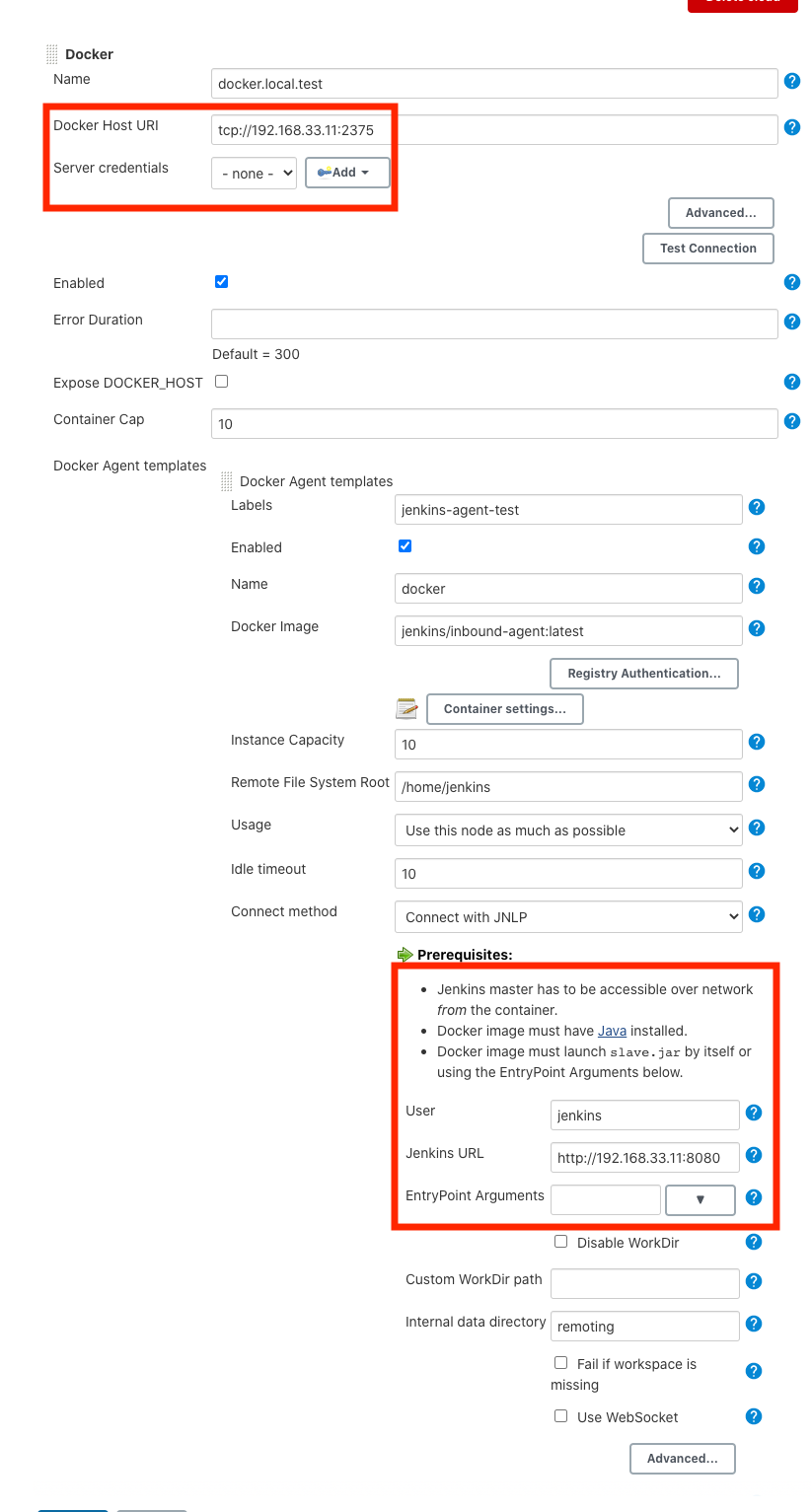

Docker Agent templates

Labels 节点标签: jenkins-docker-agent
Enabled 是否启动默认否
Name 节点名称 jenkins-docker-agent
Docker Image 镜像标签: jenkins/inbound-agent
Remote File System Root 远程文件系统根目录 /home/jenkins
用法自定义指定项目运行
Connect method 连接方式
JNLP 推荐
User 运行用户 : jenkins
Jenkins URL jenkins地址 http://192.168.33.11:8080
Idle timeout 空闲时间多少秒后杀死slave
SSH
Docker Container
Pull strategy 镜像下载策略
Pull timeout 镜像下载超时时间单位秒
Instance Capacity 实例数量

Alt Image Text

测试

node("jenkins-docker-agent"){
     sh "sleep 30"
    echo "Hello world!"
}

Alt Image Text

[Pipeline] node
Running on jenkins-docker-agent-0001w25yyyc8a on docker in /home/jenkins/workspace/dokcer-agent3
[Pipeline] {
[Pipeline] sh

二、基于Docker的pipeline流水线¶

2.1 容器中编译流水线作业¶

2.1.1 准备工作¶

配置JenkinsMaster挂载Docker

docker run -d -p 8080:8080 -p 50000:50000 --env=JAVA_OPTS=-Djenkins.install.runSetupWizard=false -v /var/lib/jenkins:/var/jenkins_home  -v /var/run/docker.sock:/var/run/docker.sock -v /usr/bin/docker:/usr/bin/docker jenkins:v20200816

解决权限问题/以root用户运行

docker exec -it 005a7714ecc9 bash
jenkins@005a7714ecc9:/$ docker ps
Got permission denied while trying to connect to the Docker daemon socket at unix:///var/run/docker.sock: Get http://%2Fvar%2Frun%2Fdocker.sock/v1.40/containers/json: dial unix /var/run/docker.sock: connect: permission denied

$ docker exec -it -u root 005a7714ecc9 bash

root@005a7714ecc9:/# docker ps
CONTAINER ID        IMAGE                   COMMAND                  CREATED             STATUS              PORTS                                              NAMES
005a7714ecc9        jenkins:v20200816       "/sbin/tini -- /usr/…"   4 minutes ago       Up 4 minutes        0.0.0.0:8080->8080/tcp, 0.0.0.0:50000->50000/tcp   hopeful_pascal
384516ab8579        jenkins/inbound-agent   "jenkins-agent -url …"   12 minutes ago      Up 12 minutes                                                          blissful_nash

root@005a7714ecc9:/# usermod -aG root jenkins
root@005a7714ecc9:/# exit

$ docker restart 005a7714ecc9
$ id jenkins
uid=1000(jenkins) gid=1000(jenkins) groups=1000(jenkins),0(root)

我的问题

我在主机上创建了docker的group, 根据这个文章 https://docs.docker.com/engine/install/linux-postinstall/

sudo groupadd docker
sudo usermod -aG docker $USER

$ cat /etc/group
...
docker:x:993:vagrant

$ docker exec -it -u root 005a7714ecc9 bash
$ groupadd -g 993 docker-test

root@005a7714ecc9:/# usermod -aG docker-test jenkins
root@005a7714ecc9:/# id jenkins
uid=1000(jenkins) gid=1000(jenkins) groups=1000(jenkins),0(root),1001(docker),993(docker-test)

root@005a7714ecc9:/# cat /etc/group
...
docker-test:x:993:jenkins

$ docker exec -it 005a7714ecc9 bash
jenkins@005a7714ecc9:/$ docker ps
CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS              PORTS                                              NAMES
005a7714ecc9        jenkins:v20200816   "/sbin/tini -- /usr/…"   5 hours ago         Up 3 hours          0.0.0.0:8080->8080/tcp, 0.0.0.0:50000->50000/tcp   hopeful_pascal

jenkins should have permission now.

Getting “Permission Denied” error when pulling a docker image in Jenkins docker container on Mac

2.1.2 测试流水线¶

pipeline {
    agent {
        docker {
            image 'maven:3.6.3-jdk-8'
            args '-v $HOME/.m2:/root/.m2'
        }
    }
    stages {
        stage('Build') {
            steps {
                sh 'mvn -v'
            }
        }
    }
}

Console Output

Running on Jenkins in /var/jenkins_home/workspace/docker-pipeline1
[Pipeline] {
[Pipeline] isUnix
[Pipeline] sh
+ docker inspect -f . maven:3.6.3-jdk-8
.
[Pipeline] withDockerContainer
Jenkins seems to be running inside container 005a7714ecc980f673c3083030ff79a82687681de55d9cd9875625a5aa0520f3
$ docker run -t -d -u 1000:1000 -v $HOME/.m2:/root/.m2 -w /var/jenkins_home/workspace/docker-pipeline1 --volumes-from 005a7714ecc980f673c3083030ff79a82687681de55d9cd9875625a5aa0520f3 -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** maven:3.6.3-jdk-8 cat
$ docker top c8aec18483a36a66c120975c09b667ba0292a7abebbe3b4409a5bbc1d23469ae -eo pid,comm
[Pipeline] {
[Pipeline] stage
[Pipeline] { (Build)
[Pipeline] sh
+ mvn -v
Apache Maven 3.6.3 (cecedd343002696d0abb50b32b541b8a6ba2883f)
Maven home: /usr/share/maven
Java version: 1.8.0_265, vendor: Oracle Corporation, runtime: /usr/local/openjdk-8/jre
Default locale: en, platform encoding: UTF-8
OS name: "linux", version: "3.10.0-957.12.2.el7.x86_64", arch: "amd64", family: "unix"
[Pipeline] sleep
Sleeping for 30 sec
[Pipeline] }
[Pipeline] // stage
[Pipeline] }
$ docker stop --time=1 c8aec18483a36a66c120975c09b667ba0292a7abebbe3b4409a5bbc1d23469ae
$ docker rm -f c8aec18483a36a66c120975c09b667ba0292a7abebbe3b4409a5bbc1d23469ae
[Pipeline] // withDockerContainer
[Pipeline] }
[Pipeline] // node
[Pipeline] End of Pipeline
Finished: SUCCESS

2.1.3 前后端未分离项目¶

对于代码库中既包含前端项目又包含后端项目的配置。可以启动多个容器。

pipeline {
    agent none
    stages {
        stage('ServiceBuild') {
            agent {
                docker {
                    image 'maven:3.6.3-jdk-8'
                    args '-v $HOME/.m2:/root/.m2'
                }
            }
            steps {
                sh 'mvn -v  && sleep 15'
            }
        }

        stage('WebBuild') {
            agent {
                docker {
                    image 'node:7-alpine'
                    args '-v $HOME/.npm:/root/.npm'
                }
            }
            steps {
                sh 'node -v  && sleep 15'
            }
        }
    }
}

Console output

Running on Jenkins in /var/jenkins_home/workspace/docker-pipeline2
[Pipeline] {
[Pipeline] isUnix (hide)
[Pipeline] sh
+ docker inspect -f . maven:3.6.3-jdk-8
.
[Pipeline] withDockerContainer
Jenkins seems to be running inside container 005a7714ecc980f673c3083030ff79a82687681de55d9cd9875625a5aa0520f3
$ docker run -t -d -u 1000:1000 -v $HOME/.m2:/root/.m2 -w /var/jenkins_home/workspace/docker-pipeline2 --volumes-from 005a7714ecc980f673c3083030ff79a82687681de55d9cd9875625a5aa0520f3 -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** maven:3.6.3-jdk-8 cat
$ docker top 9f15b56640e3d65660876a4f854918103f7f099150dbb5f99dff43ace1296392 -eo pid,comm
[Pipeline] {
[Pipeline] sh
+ mvn -v
Apache Maven 3.6.3 (cecedd343002696d0abb50b32b541b8a6ba2883f)
Maven home: /usr/share/maven
Java version: 1.8.0_265, vendor: Oracle Corporation, runtime: /usr/local/openjdk-8/jre
Default locale: en, platform encoding: UTF-8
OS name: "linux", version: "3.10.0-957.12.2.el7.x86_64", arch: "amd64", family: "unix"
+ sleep 15
[Pipeline] }
$ docker stop --time=1 9f15b56640e3d65660876a4f854918103f7f099150dbb5f99dff43ace1296392
$ docker rm -f 9f15b56640e3d65660876a4f854918103f7f099150dbb5f99dff43ace1296392
[Pipeline] // withDockerContainer
[Pipeline] }
[Pipeline] // node
[Pipeline] }
[Pipeline] // stage
[Pipeline] stage
[Pipeline] { (WebBuild)
[Pipeline] node
Running on Jenkins in /var/jenkins_home/workspace/docker-pipeline2
[Pipeline] {
[Pipeline] isUnix
[Pipeline] sh
+ docker inspect -f . node:7-alpine
.
[Pipeline] withDockerContainer
Jenkins seems to be running inside container 005a7714ecc980f673c3083030ff79a82687681de55d9cd9875625a5aa0520f3
$ docker run -t -d -u 1000:1000 -v $HOME/.npm:/root/.npm -w /var/jenkins_home/workspace/docker-pipeline2 --volumes-from 005a7714ecc980f673c3083030ff79a82687681de55d9cd9875625a5aa0520f3 -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** node:7-alpine cat
$ docker top 33be7fc88b0f15f3cd3f947250e3b0d6d57f05096b6bac2bee7006cf0e380680 -eo pid,comm
[Pipeline] {
[Pipeline] sh
+ node -v
v7.10.1
+ sleep 15
[Pipeline] }
$ docker stop --time=1 33be7fc88b0f15f3cd3f947250e3b0d6d57f05096b6bac2bee7006cf0e380680
$ docker rm -f 33be7fc88b0f15f3cd3f947250e3b0d6d57f05096b6bac2bee7006cf0e380680
[Pipeline] // withDockerContainer

2.1.4 前端项目流水线¶

$ cd /home/vagrant/workspace/workspace/demo-pipeline3

// 安装 vue-cli

$ sudo chown -R 1000:1000 "/home/vagrant/.npm"

$  npm install -g @vue/cli-init
npm WARN deprecated vue-cli@2.9.6: This package has been deprecated in favour of @vue/cli
npm WARN deprecated request@2.88.2: request has been deprecated, see https://github.com/request/request/issues/3142
npm WARN deprecated coffee-script@1.12.7: CoffeeScript on NPM has moved to "coffeescript" (no hyphen)
npm WARN deprecated har-validator@5.1.5: this library is no longer supported
+ @vue/cli-init@4.5.4
added 251 packages from 206 contributors in 17.774s

$ vue --version
@vue/cli 4.5.4

$ cd /home/vagrant/workspace/workspace/demo-pipeline3
$ $ vue init webpack demo

? Project name demo
? Project description A Vue.js project
? Author
? Vue build standalone
? Install vue-router? Yes
? Use ESLint to lint your code? Yes
? Pick an ESLint preset Standard
? Set up unit tests Yes
? Pick a test runner jest
? Setup e2e tests with Nightwatch? No
? Should we run `npm install` for you after the project has been created? (recommended) npm

   vue-cli · Generated "demo".

## Installing project dependencies ...

编写jenkinsfile

pipeline {
   agent {node {label "hostmachine"}}
    stages {
        stage('WebBuild') {
            steps {
                script {
                    docker.image('node:10.19.0-alpine').inside('-u 0:0 -v /var/jenkins_home/.npm:/root/.npm') {

                        sh """
                            id
                            ls /root/.npm

                            ls /root/ -a
                            npm config set unsafe-perm=true
                            npm config list
                            npm config set cache  /root/.npm
                            #npm config set registry https://registry.npm.taobao.org
                            npm config list
                            ls
                            cd demo && npm install  --unsafe-perm=true && npm run build  && ls -l dist/ && sleep 15
                        """
                    }
                }
            }
        }
    }
}

Console output

$ docker run -t -d -u 1000:1000 -u 0:0 -v /var/jenkins_home/.npm:/root/.npm -w /home/vagrant/workspace/workspace/demo-pipeline3 -v /home/vagrant/workspace/workspace/demo-pipeline3:/home/vagrant/workspace/workspace/demo-pipeline3:rw,z -v /home/vagrant/workspace/workspace/demo-pipeline3@tmp:/home/vagrant/workspace/workspace/demo-pipeline3@tmp:rw,z -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** -e ******** node:10.19.0-alpine cat
$ docker top ea767dafdc3ba98baf9399ebcde3fd491911d77a0c993f92a8a3b6f44a51fc7a -eo pid,comm
[Pipeline] {
[Pipeline] sh
+ id
uid=0(root) gid=0(root)
+ ls /root/.npm
_cacache
_locks
_logs
anonymous-cli-metrics.json
+ npm config set 'unsafe-perm=true'
+ npm config list
; cli configs
metrics-registry = "https://registry.npmjs.org/"
scope = ""
user-agent = "npm/6.13.4 node/v10.19.0 linux x64 ci/jenkins"

; userconfig /root/.npmrc
unsafe-perm = true

; node bin location = /usr/local/bin/node
; cwd = /home/vagrant/workspace/workspace/demo-pipeline3
; HOME = /root
; "npm config ls -l" to show all defaults.

+ npm config set cache /root/.npm
+ npm config list
; cli configs
metrics-registry = "https://registry.npmjs.org/"
scope = ""
user-agent = "npm/6.13.4 node/v10.19.0 linux x64 ci/jenkins"

; userconfig /root/.npmrc
cache = "/root/.npm"
unsafe-perm = true

; node bin location = /usr/local/bin/node
; cwd = /home/vagrant/workspace/workspace/demo-pipeline3
; HOME = /root
; "npm config ls -l" to show all defaults.

+ ls
demo
package-lock.json
+ cd demo
+ npm install '--unsafe-perm=true'
Cannot contact hostmachine: java.lang.InterruptedException
npm WARN optional SKIPPING OPTIONAL DEPENDENCY: fsevents@2.1.3 (node_modules/chokidar/node_modules/fsevents):
npm WARN notsup SKIPPING OPTIONAL DEPENDENCY: Unsupported platform for fsevents@2.1.3: wanted {"os":"darwin","arch":"any"} (current: {"os":"linux","arch":"x64"})
npm WARN optional SKIPPING OPTIONAL DEPENDENCY: fsevents@1.2.13 (node_modules/fsevents):
npm WARN notsup SKIPPING OPTIONAL DEPENDENCY: Unsupported platform for fsevents@1.2.13: wanted {"os":"darwin","arch":"any"} (current: {"os":"linux","arch":"x64"})

audited 1734 packages in 10.906s

28 packages are looking for funding
  run `npm fund` for details

found 89 vulnerabilities (73 low, 9 moderate, 7 high)
  run `npm audit fix` to fix them, or `npm audit` for details
+ npm run build

> demo@1.0.0 build /home/vagrant/workspace/workspace/demo-pipeline3/demo
> node build/build.js

Hash: [1mc4e4fdef7b4fbb5efe81[39m[22m
Version: webpack [1m3.12.0[39m[22m
Time: [1m12173[39m[22mms
                                                  [1mAsset[39m[22m       [1mSize[39m[22m  [1mChunks[39m[22m  [1m[39m[22m           [1m[39m[22m[1mChunk Names[39m[22m
               [1m[32mstatic/js/vendor.936b7041a764ab1c3f2c.js[39m[22m     123 kB       [1m0[39m[22m  [1m[32m[emitted][39m[22m  vendor
                  [1m[32mstatic/js/app.b22ce679862c47a75225.js[39m[22m    11.6 kB       [1m1[39m[22m  [1m[32m[emitted][39m[22m  app
             [1m[32mstatic/js/manifest.2ae2e69a05c33dfc65f8.js[39m[22m  857 bytes       [1m2[39m[22m  [1m[32m[emitted][39m[22m  manifest
    [1m[32mstatic/css/app.30790115300ab27614ce176899523b62.css[39m[22m  432 bytes       [1m1[39m[22m  [1m[32m[emitted][39m[22m  app
[1m[32mstatic/css/app.30790115300ab27614ce176899523b62.css.map[39m[22m  797 bytes        [1m[39m[22m  [1m[32m[emitted][39m[22m
           [1m[32mstatic/js/vendor.936b7041a764ab1c3f2c.js.map[39m[22m     619 kB       [1m0[39m[22m  [1m[32m[emitted][39m[22m  vendor
              [1m[32mstatic/js/app.b22ce679862c47a75225.js.map[39m[22m    22.2 kB       [1m1[39m[22m  [1m[32m[emitted][39m[22m  app
         [1m[32mstatic/js/manifest.2ae2e69a05c33dfc65f8.js.map[39m[22m    4.97 kB       [1m2[39m[22m  [1m[32m[emitted][39m[22m  manifest
                                             [1m[32mindex.html[39m[22m  506 bytes        [1m[39m[22m  [1m[32m[emitted][39m[22m

  Build complete.

  Tip: built files are meant to be served over an HTTP server.
  Opening index.html over file:// won't work.

+ ls -l dist/
total 4
-rw-r--r--    1 root     root           506 Aug 20 01:34 index.html
drwxr-xr-x    4 root     root            27 Aug 20 01:34 static
+ sleep 15
[Pipeline] }
$ docker stop --time=1 ea767dafdc3ba98baf9399ebcde3fd491911d77a0c993f92a8a3b6f44a51fc7a
$ docker rm -f ea767dafdc3ba98baf9399ebcde3fd491911d77a0c993f92a8a3b6f44a51fc7a

2.1.5 FAQ¶

npm构建权限问题：使用root用户构建。设置容器运行用户 -u 0:0

三、构建应用镜像到镜像仓库管理¶

3.1 构建应用镜像到镜像仓库管理¶

将应用构建成镜像、将镜像上传到镜像仓库非常简单。通过命令就能解决。镜像仓库巨大爆满如何解决？我们需要在开始使用前就应该设置好镜像的构建策略。（每个公司中管理不一样，具体可根据分支策略决定）。

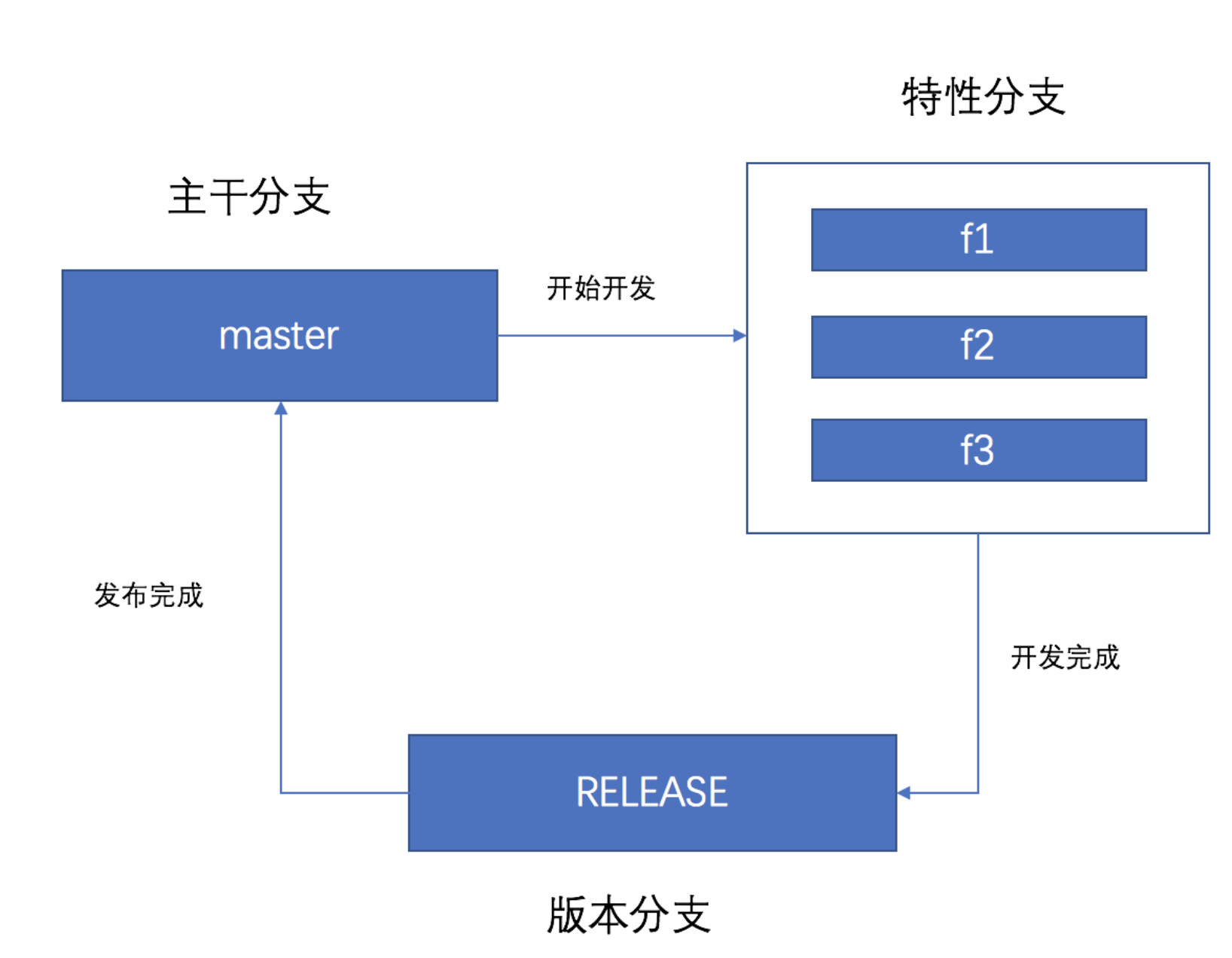

3.2 分支开发策略¶

主干分支 master
特性分支 f1 f2
版本分支 release

你会发现：

特性分支需要构建发布到特性环境验证。
版本分支需要构建发布到UAT/STAG/PROD环境验证。

考虑到：

特性分支产生的镜像会很多，而且并不重要可以定时清理掉。
版本分支产生相对较少（考虑到版本修复情况），每个版本只有一个镜像。（上线发布完成后清除掉其他）

Alt Image Text

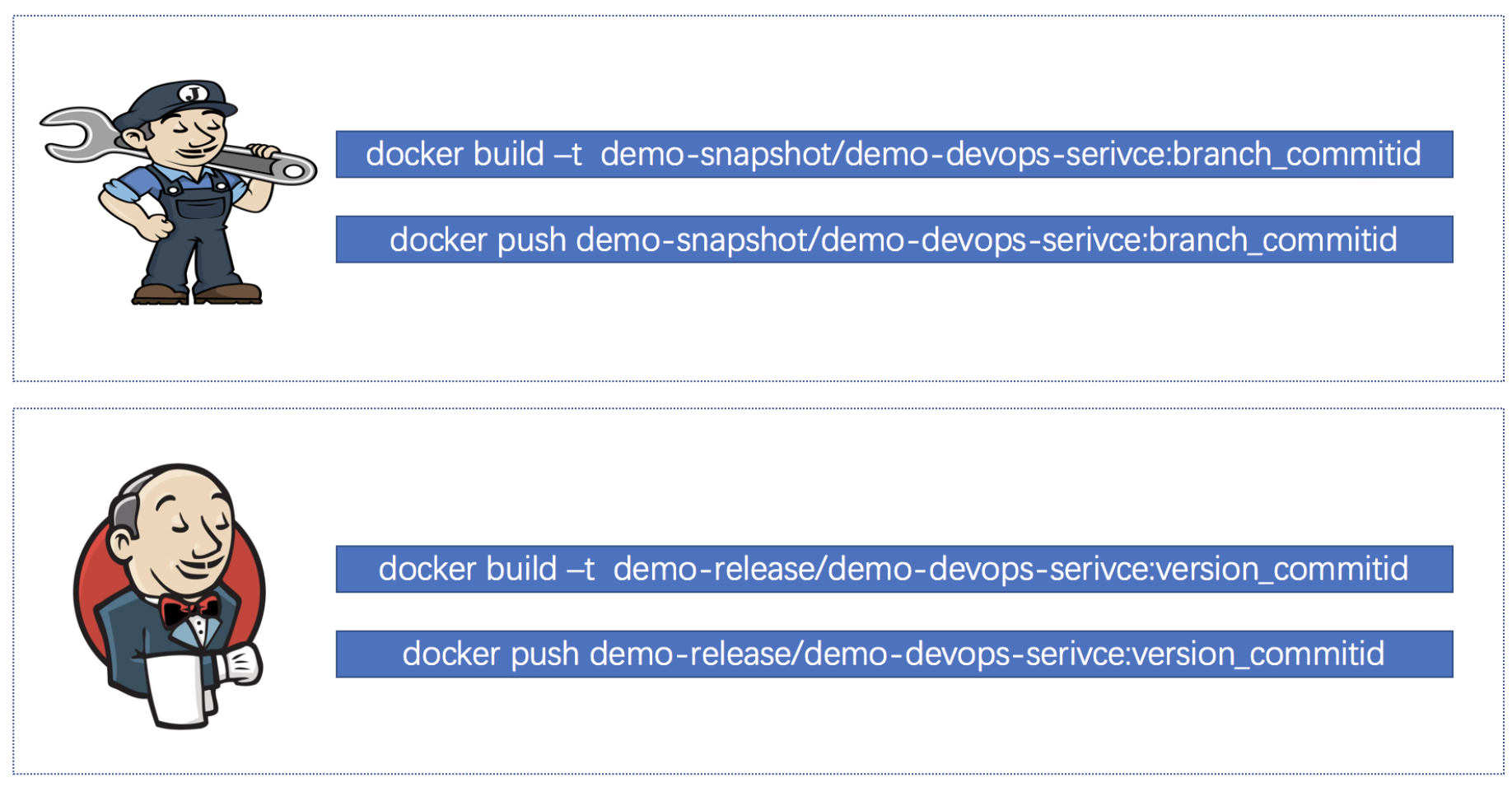

3.3 镜像管理规范¶

3.3.1 命名规范¶

仓库类型
- snapshot ：开发版本仓库
- release ：生产正式版本仓库
仓库命名
- snapshot ：业务/项目名称-snapshot demo-snapshot
- release : 业务/项目名称-release demo-release
镜像命名
- (业务/项目名称)/应用名称/标签
- DEV : demo-snapshot/demo-devops-service:branch_commitid
- PRD: demo-release/demo-devops-service:version_commitid
标签命名
- 分支名_提交ID
- 版本号_提交ID

提交ID的意义：减少重复构建

3.3.2 镜像清理策略¶

Alt Image Text

随着镜像越来越多，频繁更新导致Harbor镜像仓库容量很快爆满。

snapshot仓库：每天晚上定时清理前一天的镜像（注意风险）
release仓库：版本发布完成后，清除版本其他镜像
1.1.1_xxxxxxxxxx11
1.1.1_xxxxxxxxxx22

3.4 构建应用镜像¶

3.4.1 编写应用Dockerfile¶

$ cd demo
$ pwd
/home/vagrant/workspace/workspace/demo-pipeline3/demo

$ touch Dockerfile
$ vim Dockerfile

FROM nginx:latest

COPY dist /usr/share/nginx/html

3.4.2 配置流水线构建镜像¶

docker build -t demo-web-app:1.1.1 .

3.4.3 上传镜像¶

docker push demo-web-app:1.1.1

Jenkinsfile

pipeline {
    agent {node {label "hostmachine"}}
    stages {
        stage('WebBuild') {
            steps {
                script {
                    docker.image('node:10.19.0-alpine').inside('-u 0:0 -v /var/jenkins_home/.npm:/root/.npm') {

                        sh """
                            id
                            ls /root/.npm

                            ls /root/ -a
                            npm config set unsafe-perm=true
                            npm config list
                            npm config set cache  /root/.npm
                            #npm config set registry https://registry.npm.taobao.org
                            npm config list
                            ls
                            cd demo && npm install  --unsafe-perm=true && npm run build  && ls -l dist/ && sleep 15
                        """
                    }
                }
            }
        }

      stage("BuildImage"){
        steps {
          script{

            sh """
                #构建镜像
                cd demo
                docker build -t demo/demo-web-app:1.1.1_xxxxxxxx1 .

                #docker push demo/demo-web-app:1.1.1_xxxxxxxx1

            """

          }
        }
      }
    }
}

console output

+ cd demo
+ docker build -t demo/demo-web-app:1.1.1_xxxxxxxx1 .
Sending build context to Docker daemon    203MB
..
Successfully built 3149ee3602a7
Successfully tagged demo/demo-web-app:1.1.1_xxxxxxxx1

 $ docker images
REPOSITORY                      TAG                 IMAGE ID            CREATED             SIZE
demo/demo-web-app               1.1.1_xxxxxxxx1     3149ee3602a7        6 minutes ago       133MB

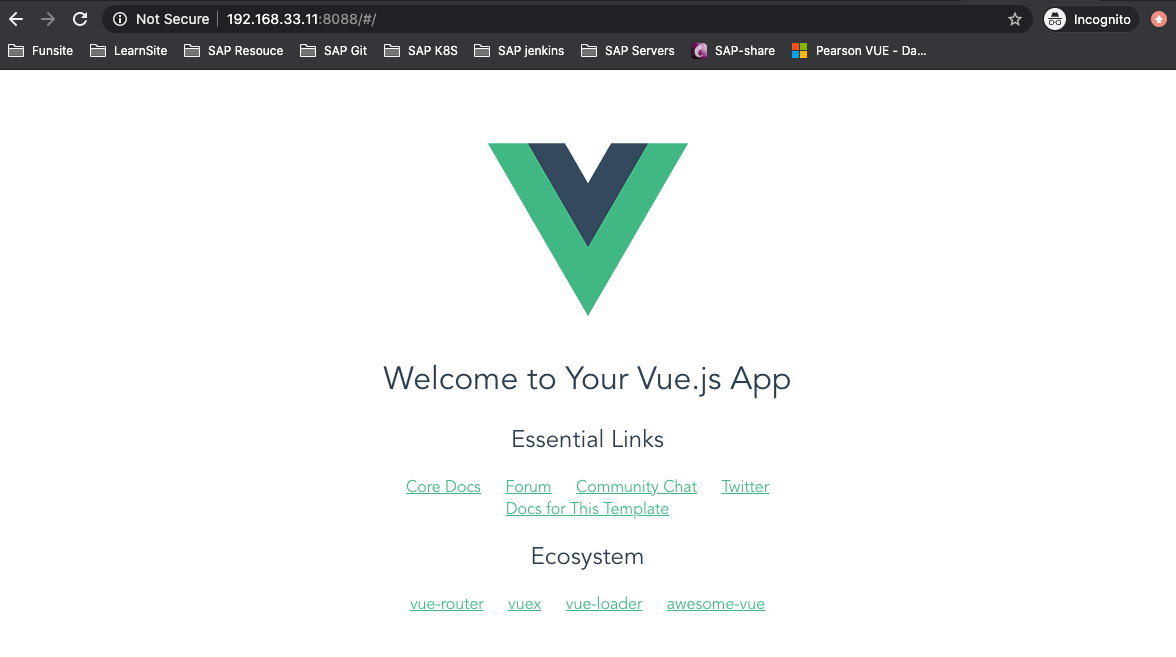

运行镜像

docker run -itd -p 8088:80 --name nginx-server demo/demo-web-app:1.1.1_xxxxxxxx1

http://192.168.33.11:8088/#/

Alt Image Text

3.5 镜像清理(Harbor) 注意风险扩展研究¶

获取标签

https://registry.demo.com/api/repositories/${registryName}/${serviceName}/tags
方式： GET

删除标签

https://registry.demo.com/api/repositories/${registryName}/${serviceName}/tags/${tag}
方式： DELETE

#!groovy
@Library('jenkinslib@master') _

def tools = new org.devops.tools()

String registryName = "${env.registryName}"
String serviceName = "${env.serviceName}"
String tagName = "${env.tagName}"
def harborProjects = []

currentBuild.description = "Trigger by ${serviceName} ${tagName}"

pipeline {
agent { node { label "build"} }

stages{

stage("GetHarborTags"){
    steps{
        timeout(time:5, unit:"MINUTES"){
            script{
                tools.PrintMes("获取Harbor仓库中的项目信息","green")
                println(serviceName)

                try {
                    response = httpRequest authentication: 'harbor-admin,
                                           url: "https://registry.demo.com/api/repositories/${registryName}/${serviceName}/tags",
                                           ignoreSslErrors: true
                    //println(response.content)
                    response = readJSON text: """${response.content}"""

                } catch(e){
                    response = ['name':'']
                    println(e)
                    println("Harbor镜像不存在此标签！")

                }

                /*println(tagName)
                for (tagname in response){
                    //println(response)
                    harborProjects << tagname['name']
                }

                println(harborProjects)*/

            }
        }
    }
}

stage("DeleteHarborTags"){
    steps{
        timeout(time:20, unit:"MINUTES"){
            script{
                tools.PrintMes("总共找到 ${harborProjects.size()} 个标签","green")
                sumImageNum = harborProjects.size()
                for (tag in harborProjects){
                    sumImageNum -= 1

                    tools.PrintMes(" ${sumImageNum}  Delete Tags ---> ${registryName} --> ${serviceName} --> ${tag} ","green")

                    httpRequest httpMode: 'DELETE',
                               authentication: 'c016027e-0573-4246-93cf-f4a55b08a86a',
                               url: "https://registry.demo.com/api/repositories/${registryName}/${serviceName}/tags/${tag}",
                               ignoreSslErrors: true

                    sleep 1
                }
            }
        }
    }
}
}

post {
always{
    script{
        cleanWs notFailBuild: true
    }
}
}
}

四、使用Groovy代码初始化Docker配置¶

4.1 解析官方提供的groovy代码¶

插件地址: https://plugins.jenkins.io/docker-plugin/

https://github.com/jenkinsci/docker-plugin/blob/master/docs/attachments/docker-plugin-configuration-script.groovy

import com.nirima.jenkins.plugins.docker.DockerCloud
import com.nirima.jenkins.plugins.docker.DockerTemplate
import com.nirima.jenkins.plugins.docker.DockerTemplateBase
import com.nirima.jenkins.plugins.docker.launcher.AttachedDockerComputerLauncher
import io.jenkins.docker.connector.DockerComputerAttachConnector
import jenkins.model.Jenkins

src/main/java/com/nirima/jenkins/plugins/docker目录可以看到这些源码文件。

Alt Image Text

src/main/java/com/nirima/jenkins/plugins/docker/launcher 目录下可以看多支持的启动类型。

Alt Image Text

src/main/java/io/jenkins/docker/connector 目录下定义的是每个启动类型对应的连接器。

Alt Image Text

dockerTemplateBaseParameters定义容器的模板所需要的基本参数，实例化新的对象dockerTemplateBase。

Alt Image Text

//Docker容器的配置参数
def dockerTemplateBaseParameters = [
  bindAllPorts:       false,
  bindPorts:          '',
  cpuShares:          null,
  dnsString:          '',
  dockerCommand:      '',
  environmentsString: '',
  extraHostsString:   '',
  hostname:           '',
  image:              'jenkins/inbound-agent:latest',
  macAddress:         '',
  memoryLimit:        null,
  memorySwap:         null,
  network:            '',
  privileged:         false,
  pullCredentialsId:  '',
  sharedMemorySize:   null,
  tty:                true,
  volumesFromString:  '',
  volumesString:      ''
]

//Docker容器的配置参数
def DockerTemplateParameters = [
  instanceCapStr: '4',    //实例数量
  labelString:    'docker.local.jenkins.slave',    //节点标签
  remoteFs:       ''     //根目录
]

//src/main/java/com/nirima/jenkins/plugins/docker/DockerTemplateBase.java
//实例化参数
DockerTemplateBase dockerTemplateBase = new DockerTemplateBase(
  dockerTemplateBaseParameters.image,
  dockerTemplateBaseParameters.pullCredentialsId,
  dockerTemplateBaseParameters.dnsString,
  dockerTemplateBaseParameters.network,
  dockerTemplateBaseParameters.dockerCommand,
  dockerTemplateBaseParameters.volumesString,
  dockerTemplateBaseParameters.volumesFromString,
  dockerTemplateBaseParameters.environmentsString,
  dockerTemplateBaseParameters.hostname,
  dockerTemplateBaseParameters.memoryLimit,
  dockerTemplateBaseParameters.memorySwap,
  dockerTemplateBaseParameters.cpuShares,
  dockerTemplateBaseParameters.sharedMemorySize,
  dockerTemplateBaseParameters.bindPorts,
  dockerTemplateBaseParameters.bindAllPorts,
  dockerTemplateBaseParameters.privileged,
  dockerTemplateBaseParameters.tty,
  dockerTemplateBaseParameters.macAddress,
  dockerTemplateBaseParameters.extraHostsString
)

根据Docker容器的配置参数，创建一个DockerComputerAttachConnector类型的容器模板。

//创建容器模板
// src/main/java/com/nirima/jenkins/plugins/docker/DockerTemplate.java
DockerTemplate dockerTemplate = new DockerTemplate(
  dockerTemplateBase,
  new DockerComputerAttachConnector(),
  DockerTemplateParameters.labelString,
  DockerTemplateParameters.remoteFs,
  DockerTemplateParameters.instanceCapStr
)

声明DockerCLoud的配置信息：连接超时时间、容器实例数量、认证ID、主机名、读超时时间、服务远程地址、Docker版本信息。

//Cloud配置信息
def dockerCloudParameters = [
  connectTimeout:   3,
  containerCapStr:  '4',
  credentialsId:    '',
  dockerHostname:   '',
  name:             'docker.local',
  readTimeout:      60,
  serverUrl:        'unix:///var/run/docker.sock',
  version:          ''
]

将Docker容器的配置模板加入到DockerCloud模板中，通过Jenkins.clouds添加的jenkins配置。

//配置DockerCloud
// src/main/java/com/nirima/jenkins/plugins/docker/DockerCloud.java
DockerCloud dockerCloud = new DockerCloud(
  dockerCloudParameters.name,
  [dockerTemplate],   //docker容器模板
  dockerCloudParameters.serverUrl,
  dockerCloudParameters.containerCapStr,
  dockerCloudParameters.connectTimeout,
  dockerCloudParameters.readTimeout,
  dockerCloudParameters.credentialsId,
  dockerCloudParameters.version,
  dockerCloudParameters.dockerHostname
)

// get Jenkins instance
Jenkins jenkins = Jenkins.getInstance()

// add cloud configuration to Jenkins
jenkins.clouds.add(dockerCloud)

// save current Jenkins state to disk
jenkins.save()

复制写好的代码，在Jenkins脚本命令行运行。

import com.nirima.jenkins.plugins.docker.DockerCloud
import com.nirima.jenkins.plugins.docker.DockerTemplate
import com.nirima.jenkins.plugins.docker.DockerTemplateBase
import com.nirima.jenkins.plugins.docker.launcher.DockerComputerJNLPLauncher
import io.jenkins.docker.connector.DockerComputerJNLPConnector
import jenkins.model.Jenkins

// parameters
def dockerTemplateBaseParameters = [
  bindAllPorts:       false,
  bindPorts:          '',
  cpuPeriod:          null,
  cpuQuota:           null,
  cpuShares:          null,
  dnsString:          '',
  dockerCommand:      '',
  environmentsString: '',
  extraHostsString:   '',
  hostname:           '',
  image:              'jenkins/inbound-agent:latest',
  macAddress:         '',
  memoryLimit:        null,
  memorySwap:         null,
  network:            '',
  privileged:         false,
  pullCredentialsId:  '',
  sharedMemorySize:   null,
  tty:                true,
  volumesFromString:  '',
  volumesString:      ''
]

def DockerTemplateParameters = [
  instanceCapStr: '4',
  labelString:    'docker.local.jenkins.agent',
  remoteFs:       ''
]

def dockerCloudParameters = [
  connectTimeout:   3,
  containerCapStr:  '4',
  credentialsId:    '',
  dockerHostname:   '',
  name:             'docker.local',
  readTimeout:      60,
  serverUrl:        'unix:///var/run/docker.sock',
  version:          ''
]

// https://github.com/jenkinsci/docker-plugin/blob/docker-plugin-1.1.2/src/main/java/com/nirima/jenkins/plugins/docker/DockerTemplateBase.java
DockerTemplateBase dockerTemplateBase = new DockerTemplateBase(
  dockerTemplateBaseParameters.image,
  dockerTemplateBaseParameters.pullCredentialsId,
  dockerTemplateBaseParameters.dnsString,
  dockerTemplateBaseParameters.network,
  dockerTemplateBaseParameters.dockerCommand,
  dockerTemplateBaseParameters.volumesString,
  dockerTemplateBaseParameters.volumesFromString,
  dockerTemplateBaseParameters.environmentsString,
  dockerTemplateBaseParameters.hostname,
  dockerTemplateBaseParameters.memoryLimit,
  dockerTemplateBaseParameters.memorySwap,
  dockerTemplateBaseParameters.cpuPeriod,
  dockerTemplateBaseParameters.cpuQuota,
  dockerTemplateBaseParameters.cpuShares,
  dockerTemplateBaseParameters.sharedMemorySize,
  dockerTemplateBaseParameters.bindPorts,
  dockerTemplateBaseParameters.bindAllPorts,
  dockerTemplateBaseParameters.privileged,
  dockerTemplateBaseParameters.tty,
  dockerTemplateBaseParameters.macAddress,
  dockerTemplateBaseParameters.extraHostsString
)

// https://github.com/jenkinsci/docker-plugin/blob/docker-plugin-1.1.2/src/main/java/com/nirima/jenkins/plugins/docker/DockerTemplate.java
DockerTemplate dockerTemplate = new DockerTemplate(
  dockerTemplateBase,
  new DockerComputerAttachConnector(),
  DockerTemplateParameters.labelString,
  DockerTemplateParameters.remoteFs,
  DockerTemplateParameters.instanceCapStr
)

// https://github.com/jenkinsci/docker-plugin/blob/docker-plugin-1.1.2/src/main/java/com/nirima/jenkins/plugins/docker/DockerCloud.java
DockerCloud dockerCloud = new DockerCloud(
  dockerCloudParameters.name,
  [dockerTemplate],
  dockerCloudParameters.serverUrl,
  dockerCloudParameters.containerCapStr,
  dockerCloudParameters.connectTimeout,
  dockerCloudParameters.readTimeout,
  dockerCloudParameters.credentialsId,
  dockerCloudParameters.version,
  dockerCloudParameters.dockerHostname
)

// get Jenkins instance
Jenkins jenkins = Jenkins.getInstance()

// add cloud configuration to Jenkins
jenkins.clouds.add(dockerCloud)

// save current Jenkins state to disk
jenkins.save()

Alt Image Text

4.2 实例：添加一个JNLP类型的Docker Cloud配置¶

不同点1：需要引入DockerComputerJNLPLauncher、DockerComputerJNLPConnector、hudson.slaves.JNLPLauncher。

import com.nirima.jenkins.plugins.docker.DockerCloud
import com.nirima.jenkins.plugins.docker.DockerTemplate
import com.nirima.jenkins.plugins.docker.DockerTemplateBase
//import com.nirima.jenkins.plugins.docker.launcher.AttachedDockerComputerLauncher
import com.nirima.jenkins.plugins.docker.launcher.DockerComputerJNLPLauncher
//import io.jenkins.docker.connector.DockerComputerAttachConnector
import io.jenkins.docker.connector.DockerComputerJNLPConnector
import jenkins.model.Jenkins
import hudson.slaves.JNLPLauncher;

不同点2: JNLP类型的启动方式需要添加两个变量，分别是Jenkinsuser和Jenkins服务器地址。

// src/main/java/com/nirima/jenkins/plugins/docker/DockerTemplate.java
DockerTemplate dockerTemplate = new DockerTemplate(
  dockerTemplateBase,
  //new DockerComputerAttachConnector(),
  new DockerComputerJNLPConnector(new JNLPLauncher(null, null)).withUser("jenkins")
                        .withJenkinsUrl("http://123.123.123:8080"),
  DockerTemplateParameters.labelString,
  DockerTemplateParameters.remoteFs,
  DockerTemplateParameters.instanceCapStr
)

参考测试文件，获取JNLP方式的容器模板创建方式。

final DockerTemplate template = new DockerTemplate(
                new DockerTemplateBase(JNLP_SLAVE_IMAGE_IMAGENAME),
                new DockerComputerJNLPConnector(new JNLPLauncher(null, null)).withUser(COMMON_IMAGE_USERNAME)
                        .withJenkinsUrl(uri.toString()),
                        LABEL, COMMON_IMAGE_HOMEDIR, INSTANCE_CAP
        );

完整源码

import com.nirima.jenkins.plugins.docker.DockerCloud
import com.nirima.jenkins.plugins.docker.DockerTemplate
import com.nirima.jenkins.plugins.docker.DockerTemplateBase
//import com.nirima.jenkins.plugins.docker.launcher.AttachedDockerComputerLauncher
import com.nirima.jenkins.plugins.docker.launcher.DockerComputerJNLPLauncher
//import io.jenkins.docker.connector.DockerComputerAttachConnector
import io.jenkins.docker.connector.DockerComputerJNLPConnector
import jenkins.model.Jenkins
import hudson.slaves.JNLPLauncher;
// parameters

//Docker Agent 基本参数
def dockerTemplateBaseParameters = [
  bindAllPorts:       false,
  bindPorts:          '',
  cpuShares:          null,
  dnsString:          '',
  dockerCommand:      '',
  environmentsString: '',
  extraHostsString:   '',
  hostname:           '',
  image:              'jenkins/inbound-agent:latest',   //镜像
  macAddress:         '',
  memoryLimit:        null,
  memorySwap:         null,
  network:            '',
  privileged:         false,
  pullCredentialsId:  '',
  sharedMemorySize:   null,
  tty:                true,
  volumesFromString:  '',
  volumesString:      ''
]

//Docker Agnet 参数
def DockerTemplateParameters = [
  instanceCapStr: '10',    //实例数
  labelString:    'jenkins-agent-test',   //节点标签
  remoteFs:       '/home/jenkins'      //主目录

]

def dockerCloudParameters = [
  connectTimeout:   60,       //链接超时
  containerCapStr:  '10',     //实例数量
  credentialsId:    '',
  dockerHostname:   '',
  name:             'docker.local.test',
  readTimeout:      60,
  serverUrl:        'tcp://192.168.33.11:2375',
  version:          ''
]

// https://github.com/jenkinsci/docker-plugin/blob/docker-plugin-1.1.2/src/main/java/com/nirima/jenkins/plugins/docker/DockerTemplateBase.java
DockerTemplateBase dockerTemplateBase = new DockerTemplateBase(
  dockerTemplateBaseParameters.image,
  dockerTemplateBaseParameters.pullCredentialsId,
  dockerTemplateBaseParameters.dnsString,
  dockerTemplateBaseParameters.network,
  dockerTemplateBaseParameters.dockerCommand,
  dockerTemplateBaseParameters.volumesString,
  dockerTemplateBaseParameters.volumesFromString,
  dockerTemplateBaseParameters.environmentsString,
  dockerTemplateBaseParameters.hostname,
  dockerTemplateBaseParameters.memoryLimit,
  dockerTemplateBaseParameters.memorySwap,
  dockerTemplateBaseParameters.cpuPeriod,
  dockerTemplateBaseParameters.cpuQuota,
  dockerTemplateBaseParameters.cpuShares,
  dockerTemplateBaseParameters.sharedMemorySize,
  dockerTemplateBaseParameters.bindPorts,
  dockerTemplateBaseParameters.bindAllPorts,
  dockerTemplateBaseParameters.privileged,
  dockerTemplateBaseParameters.tty,
  dockerTemplateBaseParameters.macAddress,
  dockerTemplateBaseParameters.extraHostsString
)

// https://github.com/jenkinsci/docker-plugin/blob/docker-plugin-1.1.2/src/main/java/com/nirima/jenkins/plugins/docker/DockerTemplate.java
DockerTemplate dockerTemplate = new DockerTemplate(
  dockerTemplateBase,
  //new DockerComputerAttachConnector(),
  new DockerComputerJNLPConnector(new JNLPLauncher(null, null)).withUser("jenkins")
                        .withJenkinsUrl("http://192.168.33.11:8080"),
  DockerTemplateParameters.labelString,
  DockerTemplateParameters.remoteFs,
  DockerTemplateParameters.instanceCapStr
)

// https://github.com/jenkinsci/docker-plugin/blob/docker-plugin-1.1.2/src/main/java/com/nirima/jenkins/plugins/docker/DockerCloud.java
DockerCloud dockerCloud = new DockerCloud(
  dockerCloudParameters.name,
  [dockerTemplate],
  dockerCloudParameters.serverUrl,
  dockerCloudParameters.containerCapStr,
  dockerCloudParameters.connectTimeout,
  dockerCloudParameters.readTimeout,
  dockerCloudParameters.credentialsId,
  dockerCloudParameters.version,
  dockerCloudParameters.dockerHostname
)

// get Jenkins instance
Jenkins jenkins = Jenkins.getInstance()

// add cloud configuration to Jenkins
jenkins.clouds.add(dockerCloud)

// save current Jenkins state to disk
jenkins.save()

Alt Image Text

Jenkins Docker 集成实践：构建资源池、容器化流水线与镜像发布

一、基于Docker配置构建资源池¶

1.1 整体架构¶

1.2 Docker安装Jenkins Slave节点(静态)¶

1.3 基于Docker配置Jenkins Slave节点(动态)¶

1.3.1 方式1：启动镜像进行构建(无需连接master)¶

1.3.2 方式2：使用CLoud¶

二、基于Docker的pipeline流水线¶

2.1 容器中编译流水线作业¶

2.1.1 准备工作¶

2.1.2 测试流水线¶

2.1.3 前后端未分离项目¶

2.1.4 前端项目流水线¶

2.1.5 FAQ¶

三、构建应用镜像到镜像仓库管理¶

3.1 构建应用镜像到镜像仓库管理¶

3.2 分支开发策略¶

3.3 镜像管理规范¶

3.3.1 命名规范¶

3.3.2 镜像清理策略¶

3.4 构建应用镜像¶

3.4.1 编写应用Dockerfile¶

3.4.2 配置流水线构建镜像¶

3.4.3 上传镜像¶

3.5 镜像清理(Harbor) 注意风险扩展研究¶

四、使用Groovy代码初始化Docker配置¶

4.1 解析官方提供的groovy代码¶

4.2 实例：添加一个JNLP类型的Docker Cloud配置¶

评论区

一、基于Docker配置构建资源池¶

1.1 整体架构¶

1.2 Docker安装Jenkins Slave节点(静态)¶

1.3 基于Docker配置Jenkins Slave节点(动态)¶

1.3.1 方式1： 启动镜像进行构建(无需连接master)¶

1.3.2 方式2： 使用CLoud¶

二、基于Docker的pipeline流水线¶

2.1 容器中编译流水线作业¶

2.1.1 准备工作¶

2.1.2 测试流水线¶

2.1.3 前后端未分离项目¶

2.1.4 前端项目流水线¶

2.1.5 FAQ¶

三、构建应用镜像到镜像仓库管理¶

3.1 构建应用镜像到镜像仓库管理¶

3.2 分支开发策略¶

3.3 镜像管理规范¶

3.3.1 命名规范¶

3.3.2 镜像清理策略¶

3.4 构建应用镜像¶

3.4.1 编写应用Dockerfile¶

3.4.2 配置流水线构建镜像¶

3.4.3 上传镜像¶

3.5 镜像清理(Harbor) 注意风险 扩展研究¶

四、使用Groovy代码初始化Docker配置¶

4.1 解析官方提供的groovy代码¶

4.2 实例： 添加一个JNLP类型的Docker Cloud配置¶

评论区

1.3.1 方式1：启动镜像进行构建(无需连接master)¶

1.3.2 方式2：使用CLoud¶

3.5 镜像清理(Harbor) 注意风险扩展研究¶

4.2 实例：添加一个JNLP类型的Docker Cloud配置¶
