一、基于Jira端到端流水线的最佳实践

1.1 流水线实践规划设计

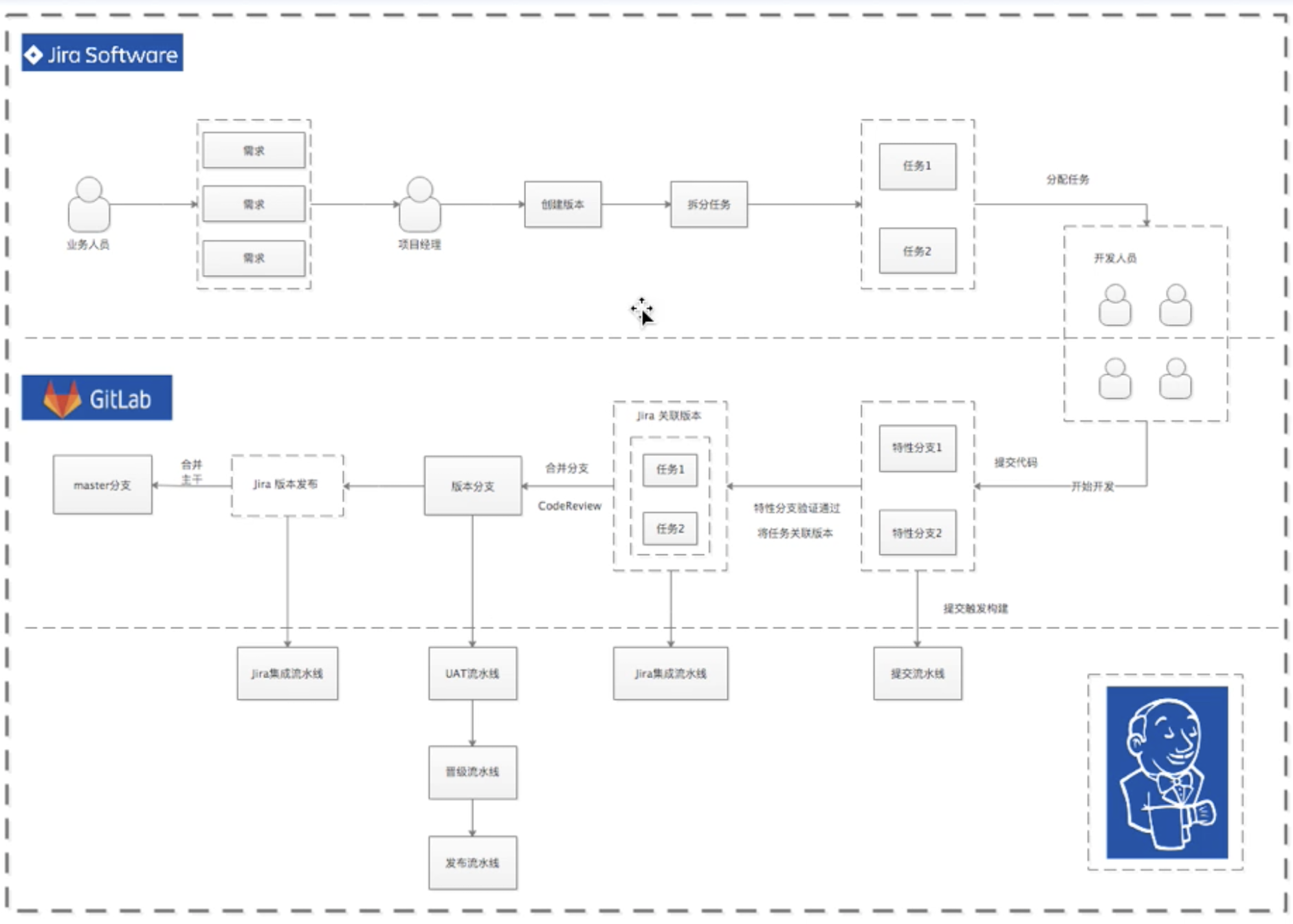

1.1.1 整体规划设计

Alt Image Text

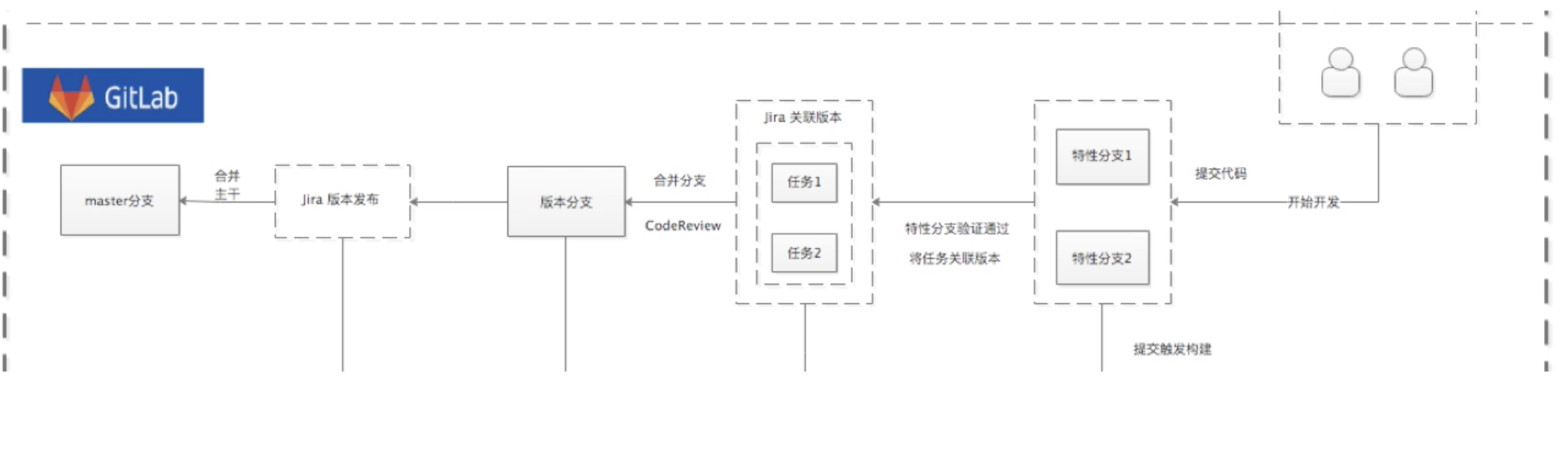

1.1.2 Jira端规划设计

  • 创建任务、故事（对应Gitlab分支）
    • 创建Jira问题 ->自动创建Gitlab分支
  • 创建发布（对应版本文件）

Alt Image Text

1.1.3 Jenkins端规划设计

提交流水线

  • 代码->编译->单测->打包->扫描->邮件通知 [Gitlab显示每次提交状态][

UAT测试流水线

  • 代码 -> 编译 -> 单测 -> 打包 -> 扫描 -> 接口测试 -> 镜像 -> 发布 -> 生成版本文件 -> 邮件通知

晋级／版本更新流水线

  • 选择晋级策略 -> 根据版本文件晋级 -> 生成新版本文件

STAGE /PROD发布流水线

  • 选择版本号 -> 获取版本文件 -> 发布应用

Jira集成流水线

  • Jira版本发布 -> 分支合并 -> 清理分支

二、Jenkins K8S Gitlab集成

2.1 Jenkins K8S Gitlab集成

文档： https://kubernetes.io/docs/reference/generated/kubernetes-api/v1.18/#deployment-v1-apps

2.2 Curl K8S-API Without kubectl proxy

https://kubernetes.io/docs/tasks/administer-cluster/access-cluster-api/

$ kubectl config view -o jsonpath='{"Cluster name\tServer\n"}{range .clusters[*]}{.name}{"\t"}{.cluster.server}{"\n"}{end}'
Cluster name    Server
docker-desktop  https://kubernetes.docker.internal:6443

## Point to the API server referring the cluster name
kubectl config view -o jsonpath="{.clusters[?(@.name==\"docker-desktop\")].cluster.server}"
https://kubernetes.docker.internal:6443

## Gets the token value
kubectl get secrets -o jsonpath="{.items[?(@.metadata.annotations['kubernetes\.io/service-account\.name']=='default')].data.token}"|base64 --decode

curl -X GET https://kubernetes.docker.internal:6443/api --header "Authorization: Bearer eyJhbGciOiJSUzI1NiIsImtpZCI6IkJLazJRem5PZVpBOHoyVjRHUFZtX2w4VURDcjNEQ2xucVdoRGF5QldxR00ifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJkZWZhdWx0Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZWNyZXQubmFtZSI6ImRlZmF1bHQtdG9rZW4tYjVxa3YiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC5uYW1lIjoiZGVmYXVsdCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VydmljZS1hY2NvdW50LnVpZCI6ImVjNDMwNjYxLTkxYzktNDZlYS05YzllLWJmYWFkNTA2MmIwZiIsInN1YiI6InN5c3RlbTpzZXJ2aWNlYWNjb3VudDpkZWZhdWx0OmRlZmF1bHQifQ.vXOTW2DaIZhOzcIazOzCuI2Kc_BBQcfJ77sZpT_vnAYsPledlhb_-pUYZblxTtzomQYHRDSKw_Ffsp-wHpFcX2R_g2N8ww0MZ-Np3nv7T-_vAdExhyRVyYcfwDcA3l4QFxjTLFM9qUAMhqlnrBAbkfE1gNNA6IzWwwrftu4L42BPBLa4nzb_dxjYMHUoKhlj79AoLvPDaeLVicl6YXunEZlzqYDNe3z9fbiO_c2h7dYf70FWO34q5GGqvc0yItPlpl2w4irxviK_0j_kVEn-7uIHwGW66CH5i-vJazh7jQmJG9dapBVN9lg00MrD-q3zcV1O2WWpmvUacR6bauWe9A" --insecure
{
  "kind": "APIVersions",
  "versions": [
    "v1"
  ],
  "serverAddressByClientCIDRs": [
    {
      "clientCIDR": "0.0.0.0/0",
      "serverAddress": "192.168.65.3:6443"
    }
  ]
}

curl --header "Authorization: Bearer eyJhbGciOiJSUzI1NiIsImtpZCI6IkJLazJRem5PZVpBOHoyVjRHUFZtX2w4VURDcjNEQ2xucVdoRGF5QldxR00ifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJkZWZhdWx0Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZWNyZXQubmFtZSI6ImRlZmF1bHQtdG9rZW4tYjVxa3YiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC5uYW1lIjoiZGVmYXVsdCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VydmljZS1hY2NvdW50LnVpZCI6ImVjNDMwNjYxLTkxYzktNDZlYS05YzllLWJmYWFkNTA2MmIwZiIsInN1YiI6InN5c3RlbTpzZXJ2aWNlYWNjb3VudDpkZWZhdWx0OmRlZmF1bHQifQ.vXOTW2DaIZhOzcIazOzCuI2Kc_BBQcfJ77sZpT_vnAYsPledlhb_-pUYZblxTtzomQYHRDSKw_Ffsp-wHpFcX2R_g2N8ww0MZ-Np3nv7T-_vAdExhyRVyYcfwDcA3l4QFxjTLFM9qUAMhqlnrBAbkfE1gNNA6IzWwwrftu4L42BPBLa4nzb_dxjYMHUoKhlj79AoLvPDaeLVicl6YXunEZlzqYDNe3z9fbiO_c2h7dYf70FWO34q5GGqvc0yItPlpl2w4irxviK_0j_kVEn-7uIHwGW66CH5i-vJazh7jQmJG9dapBVN9lg00MrD-q3zcV1O2WWpmvUacR6bauWe9A" --insecure  -X GET https://kubernetes.docker.internal:6443/api/v1/nodes

{
  "kind": "NodeList",
  "apiVersion": "v1",
  "metadata": {
    "selfLink": "/api/v1/nodes",
    "resourceVersion": "1044977"
  },
  "items": [
    {
      "metadata": {
        "name": "docker-desktop",
        "selfLink": "/api/v1/nodes/docker-desktop",
        "uid": "92d70f98-883a-4cd3-8b54-35a6187eab88",
        "resourceVersion": "1044565",
        ...
}

2.3 Jenkins Pipeline调用K8S_API

2.3.1 kubernetets.groovy

package org.devops

//封装HTTP请求
def HttpReq(reqType,reqUrl,reqBody){
    def apiServer = "https://kubernetes.docker.internal:6443/apis/apps/v1"
    withCredentials([string(credentialsId: 'kubernetes-token', variable: 'kubernetestoken')]) {
      result = httpRequest customHeaders: [[maskValue: true, name: 'Authorization', value: "Bearer ${kubernetestoken}"],
                                           [maskValue: false, name: 'Content-Type', value: 'application/yaml'],
                                           [maskValue: false, name: 'Accept', value: 'application/yaml']],
                httpMode: reqType,
                consoleLogResponseBody: true,
                ignoreSslErrors: true,
                requestBody: reqBody,
                url: "${apiServer}/${reqUrl}"
                //quiet: true
    }
    return result
}
//新建Deployment
def CreateDeployment(nameSpace,deployName,deplyBody){
    apiUrl = "namespaces/${nameSpace}/deployments/"
    response = HttpReq('POST',apiUrl,deplyBody)
    println(response)
}

//删除deployment
def DeleteDeployment(nameSpace,deployName){
    apiUrl = "namespaces/${nameSpace}/deployments/${deployName}"
    response = HttpReq('DELETE',apiUrl,deplyBody)
    println(response)
}

//更新Deployment
def UpdateDeployment(nameSpace,deployName,deplyBody){
    apiUrl = "namespaces/${nameSpace}/deployments/${deployName}"
    response = HttpReq('PUT',apiUrl,deplyBody)
    println(response)
}

//获取Deployment
def GetDeployment(nameSpace,deployName){
    apiUrl = "namespaces/${nameSpace}/deployments/${deployName}"
    response = HttpReq('GET',apiUrl,'')
    return response
}

可配信息

  • kubernetes.docker.internal: Cluster Server
  • kubernetes-token

2.3.2 K8S Jenkins配置k8s信息

我们在集群内部的Jenkins配置k8s-token，SharedLibrary 等等信息

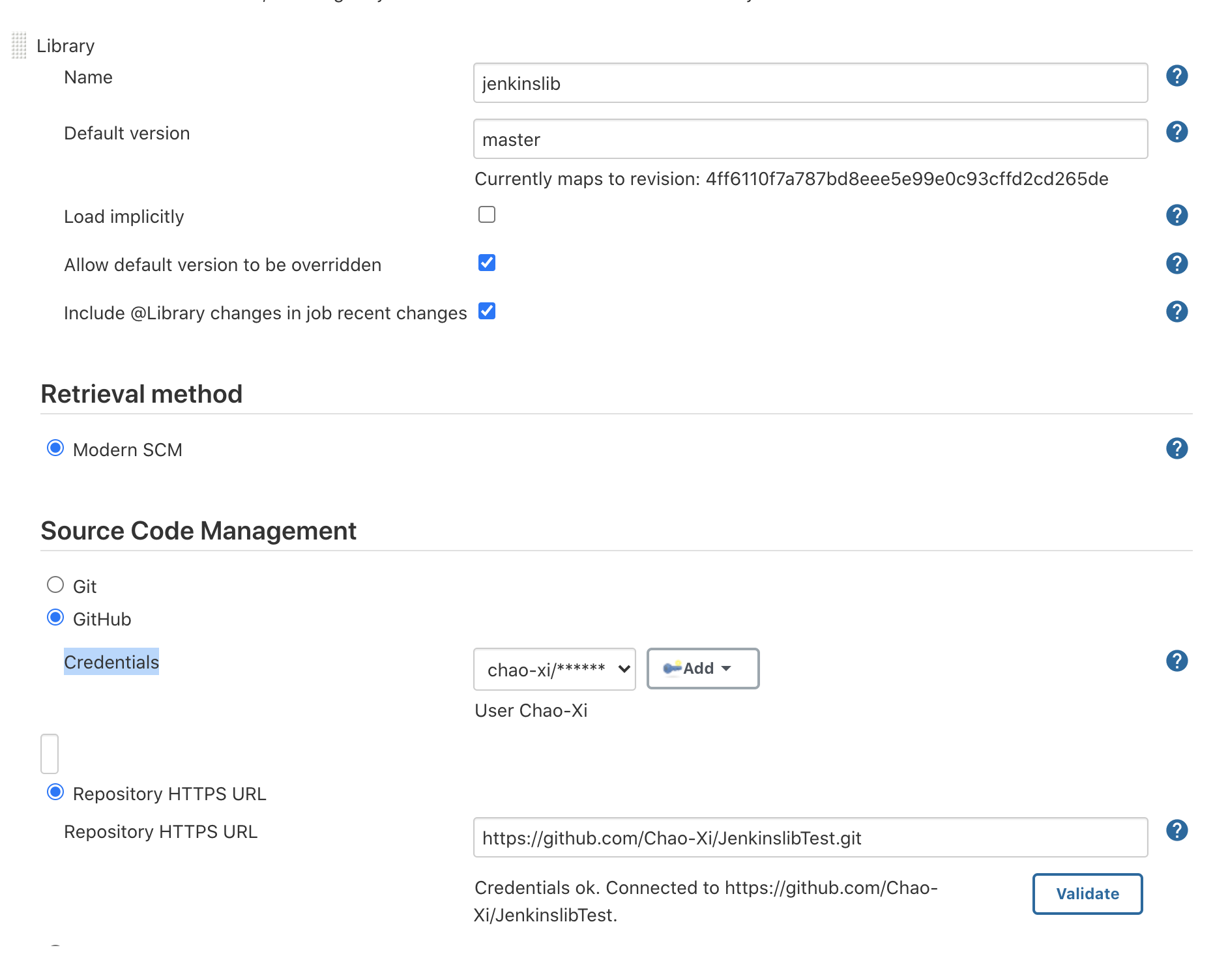

SharedLibrary

  • jenkinslib
  • master
  • https://github.com/Chao-Xi/JenkinslibTest.git
  • Credentials : github

Alt Image Text

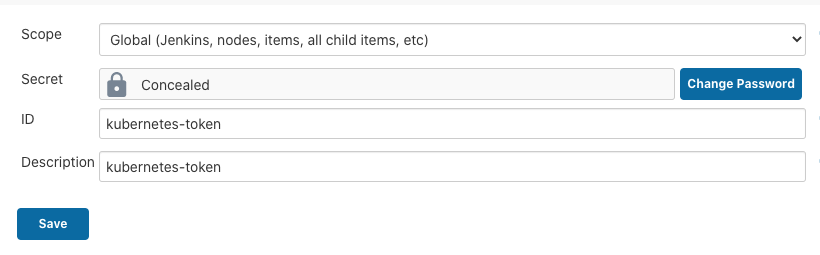

kubernetes-token

Alt Image Text

2.3.3 创建测试k8s服务

---
apiVersion: v1
kind: Namespace
metadata:
  name: demo-uat
---
apiVersion: v1
kind: Namespace
metadata:
  name: demo-stage
---
apiVersion: v1
kind: Namespace
metadata:
  name: demo-prod

kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: demoapp
  name: demoapp
  namespace: demo-prod
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: demoapp
  template:
    metadata:
      labels:
        k8s-app: demoapp
      namespace: demo-prod
      name: demoapp
    spec:
      containers:
        - name: demoapp
          image: bitnami/java-example:0.0.1
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 8080
              name: web
              protocol: TCP
      serviceAccountName: demoapp
---
apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    k8s-app: demoapp
  name: demoapp
  namespace: demo-prod
---
kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: demoapp
  name: demoapp
  namespace: demo-prod
spec:
  type: NodePort
  ports:
    - name: web
      port: 8080
      targetPort: 8080
      nodePort: 30991
  selector:
    k8s-app: demoapp

http://127.0.0.1:30991/

2.3.4 K8S Jenkins调用k8s-API Pipeline

#!groovy
@Library('jenkinslib@master') _

def k8s = new org.devops.kubernetes()

pipeline {
    agent { node { label "master" }}
    stages{
        stage("GetDeployment"){
            steps{
                script{
                    k8s.GetDeployment("demo-prod","demoapp")
                }
            }
        }
    }
}

Console output

HttpMethod: GET
URL: https://kubernetes.docker.internal:6443/apis/apps/v1/namespaces/demo-prod/deployments/demoapp
Authorization: *****
Content-Type: application/yaml
Accept: application/yaml
Sending request to url: https://kubernetes.docker.internal:6443/apis/apps/v1/namespaces/demo-prod/deployments/demoapp
Response Code: HTTP/1.1 200 OK
Response:
apiVersion: apps/v1
kind: Deployment
metadata:
  annotations:
    deployment.kubernetes.io/revision: "3"
    kubectl.kubernetes.io/last-applied-configuration: |
      {"apiVersion":"apps/v1","kind":"Deployment","metadata":{"annotations":{},"labels":{"k8s-app":"demoapp"},"name":"demoapp","namespace":"demo-prod"},"spec":{"replicas":1,"revisionHistoryLimit":10,"selector":{"matchLabels":{"k8s-app":"demoapp"}},"template":{"metadata":{"labels":{"k8s-app":"demoapp"},"name":"demoapp","namespace":"demo-prod"},"spec":{"containers":[{"image":"bitnami/java-example:0.0.1","imagePullPolicy":"IfNotPresent","name":"demoapp","ports":[{"containerPort":8080,"name":"web","protocol":"TCP"}]}],"serviceAccountName":"demoapp"}}}}
  creationTimestamp: "2020-08-27T06:13:32Z"
...
  observedGeneration: 3
  readyReplicas: 1
  replicas: 1
  updatedReplicas: 1

Success code from [100‥399]
...

2.4 上传K8S部署文件到Gitlab

2.4.1 在新的Jenkins添加gitlab-token

注意token的类型一定是secret text 否则会报错

ERROR: Credentials 'gitlab-token' is of type 'GitLab API token' where 'org.jenkinsci.plugins.plaincredentials.StringCredentials' was expected
  • sdsxxZ7ymzoTKSGZ6dNv

Alt Image Text

2.4.2 gitlab中添加创建仓库文件方法

//创建仓库文件
def CreateRepoFile(projectId,filePath,fileContent){
    apiUrl = "projects/${projectId}/repository/files/${filePath}"
    reqBody = """{"branch": "master","encoding":"base64", "content": "${fileContent}", "commit_message": "create a new file"}"""
    response = HttpReq('POST',apiUrl,reqBody)
    println(response)
}

新建文件: projects/${projectsId}/repository/files/${filepath}

  • testText.bytes.encodeBase64().toString()
  • decoded = base64text.decodeBase64()

2.4.3 Pipeline中调用CreateRepoFile上传k8s.yaml到gitlab

#!groovy
@Library('jenkinslib@master') _

def k8s = new org.devops.kubernetes()
def gitlab = new org.devops.gitlab()

pipeline {
    agent { node { label "master" }}
    parameters {
        choice(name: 'versionName', choices: '1.0\n1.1\n1.2\n1.3', description: 'Please chose your versionName')
    }
    stages{
        stage("GetDeployment"){
            steps{
                script{
                    response = k8s.GetDeployment("demo-prod","demoapp")
                    response = response.content

                    //文件转换
                    base64Content = response.bytes.encodeBase64().toString()

                    //上传文件
                    gitlab.CreateRepoFile(3,"demo-prod%2f${versionName}-prod.yaml",base64Content)

                }
            }
        }
    }
}

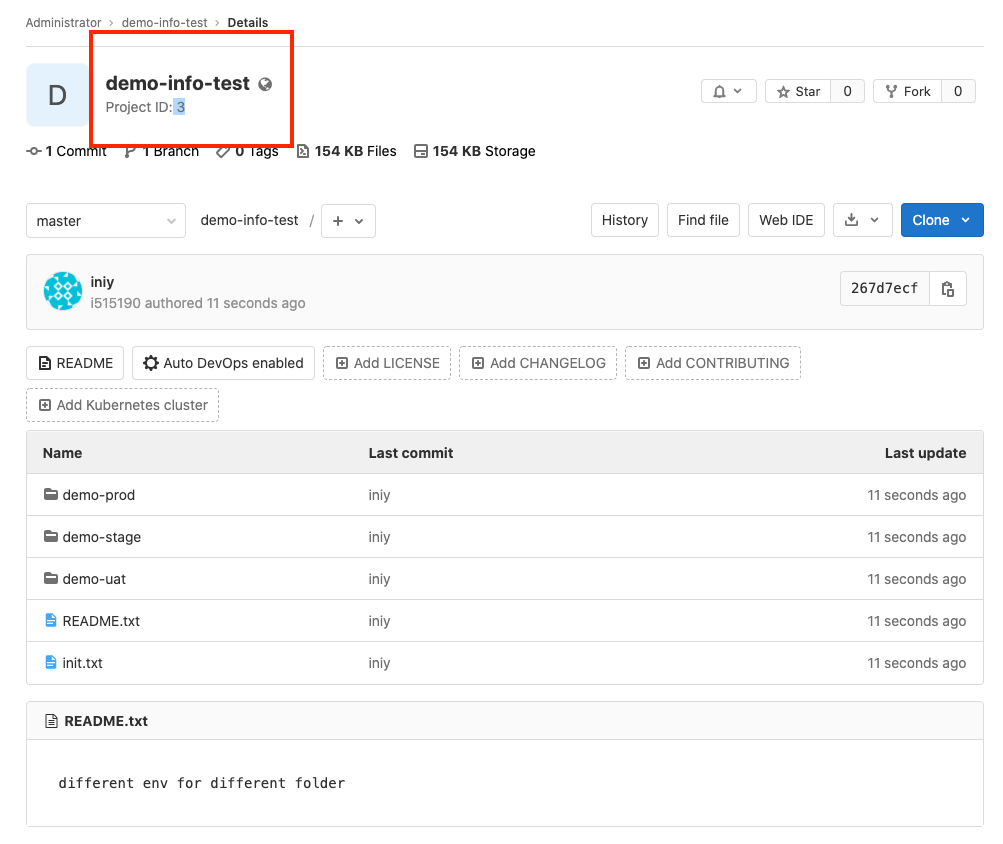

  • projectId: 3
  • filePath： "demo-prod%2f${versionName}-prod.yaml"
  • base64Content

Alt Image Text

Console output

...
[Pipeline] // withCredentials
[Pipeline] withCredentials
Masking supported pattern matches of $gitlabToken
[Pipeline] {
[Pipeline] httpRequest
HttpMethod: POST
URL: http://192.168.33.1:30088/api/v4/projects/3/repository/files/demo-prod%2f1.0-prod.yaml
Content-Type: application/json
PRIVATE-TOKEN: *****
Sending request to url: http://192.168.33.1:30088/api/v4/projects/3/repository/files/demo-prod%2f1.0-prod.yaml
Response Code: HTTP/1.1 201 Created
Response:

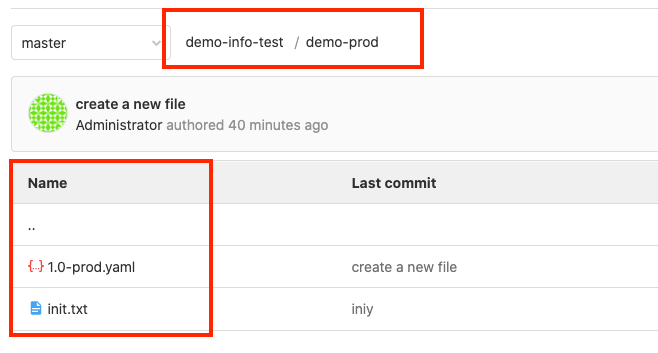

{"file_path":"demo-prod/1.0-prod.yaml","branch":"master"}
Success code from [100‥399]
[Pipeline] }
[Pipeline] // withCredentials
[Pipeline] echo
Status: 201

Alt Image Text
