一、使用Filebeat根据标签收集日志

除了逐个配置 Namespace，也可以根据 Namespace 的标签进行过滤，更加方便。

比如只收集 Namespace 具有 filebeat=true 标签的空间日志：

1、备份配置文件

[root@k8s-master01 eck]# cp filebeat.yaml filebeat-label.yaml

2、修改filebeat配置文件

添加内容

          - drop_event:
              when:
                or:
                 - not:
                    equals:
                      kubernetes.namespace_labels.filebeat: "true"

完整配置文件

[root@k8s-master01 eck]# vim  filebeat-label.yaml
apiVersion: beat.k8s.elastic.co/v1beta1
kind: Beat
metadata:
  name: filebeat
spec:
  type: filebeat
  version: 8.17.0
  image: registry.cn-hangzhou.aliyuncs.com/github_images1024/filebeat:8.17.0
  config:
    output.kafka:
      hosts: ["kafka:9092"]
      topic: '%{[fields.log_topic]}'
      #topic: 'k8spodlogs'
    filebeat.autodiscover.providers:
    - node: ${NODE_NAME}
      type: kubernetes
      templates:
      - config:
        - paths:
          - /var/log/containers/*${data.kubernetes.container.id}.log
          tail_files: true
          type: container
          fields:
            log_topic: k8spodlogs
          processors:
          - add_cloud_metadata: {}
          - add_host_metadata: {}
          - drop_event:
              when:
                or:
                 - not:
                    equals:
                      kubernetes.namespace_labels.filebeat: "true"
    processors:
    - add_cloud_metadata: {}
    - add_host_metadata: {}
    - drop_event:
            when:
              or:
                - equals:
                     kubernetes.container.name: "filebeat"
  daemonSet:
    podTemplate:
      spec:
        serviceAccountName: filebeat
        automountServiceAccountToken: true
        terminationGracePeriodSeconds: 30
        dnsPolicy: ClusterFirstWithHostNet
        hostNetwork: true # Allows to provide richer host metadata
        containers:
        - name: filebeat
          securityContext:
            runAsUser: 0
            # If using Red Hat OpenShift uncomment this:
            #privileged: true
          volumeMounts:
          - name: varlogcontainers
            mountPath: /var/log/containers
          - name: varlogpods
            mountPath: /var/log/pods
          - name: varlibdockercontainers
            mountPath: /var/lib/docker/containers
          - name: messages
            mountPath: /var/log/messages
          env:
            - name: NODE_NAME
              valueFrom:
                fieldRef:
                  fieldPath: spec.nodeName
        volumes:
        - name: varlogcontainers
          hostPath:
            path: /var/log/containers
        - name: varlogpods
          hostPath:
            path: /var/log/pods
        - name: varlibdockercontainers
          hostPath:
            path: /var/lib/docker/containers
        - name: messages
          hostPath:
            path: /var/log/messages

3、重新应用filebeat配置文件

[root@k8s-master01 eck]# k replace -f  filebeat-label.yaml  -n logging

# 验证查看
[root@k8s-master01 eck]# kgp -n logging | grep filebea
filebeat-beat-filebeat-57j8v   1/1     Running   0             7s
filebeat-beat-filebeat-hjspd   1/1     Running   0             3s
filebeat-beat-filebeat-vdjkx   1/1     Running   0             5s

4、模拟访问

[root@k8s-master01 eck]# kgp -A -owide | grep krm
krm                    krm-backend-6ff5c5f58c-wf5r9                       1/1     Running     7 (65m ago)    40d     192.168.85.231   k8s-node01     <none>           <none>
krm                    krm-frontend-588ffd677b-clxdx                      1/1     Running     8 (65m ago)    40d     192.168.85.235   k8s-node01     <none>           <none>

# 模拟访问
[root@k8s-master01 eck]# while true;do curl 192.168.85.235;done

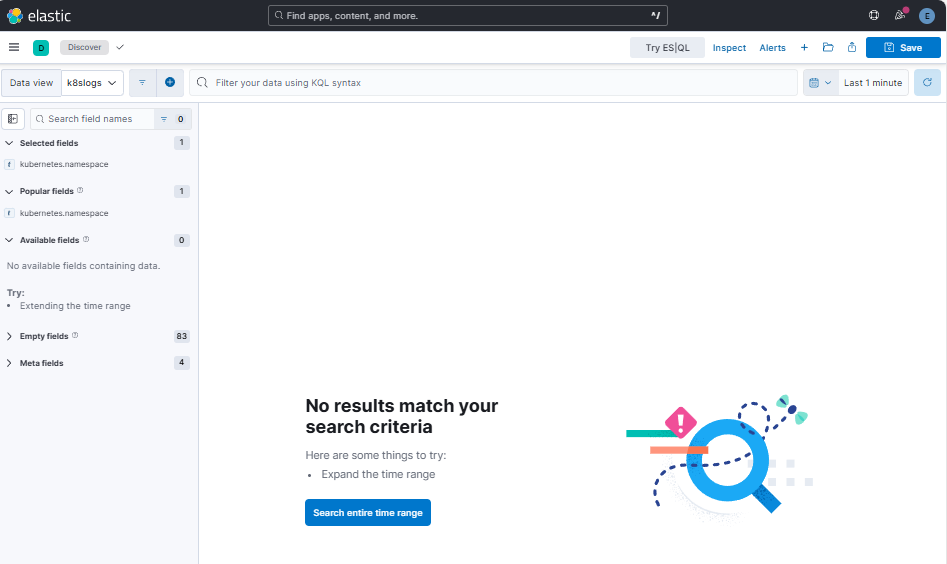

5、在搜索框中搜索namespace,选择kubernetes.namespace后，点击后面的【+】，查看krm命名空间下的日志信息，观察到没有任何日志信息

image-20250424091318292

6、给krm命名空间添加filebeat="true"的标签

# 验证之前没有添加
[root@k8s-master01 eck]# kg ns krm --show-labels | grep filebeat

# 新增标签
[root@k8s-master01 eck]# k label ns krm filebeat="true"

# 验证，已添加
[root@k8s-master01 eck]# kg ns krm --show-labels | grep filebeat
krm    Active   40d   filebeat=true,kubernetes.io/metadata.name=krm

7、重新测试访问

[root@k8s-master01 eck]# kgp -A -owide | grep krm
krm                    krm-backend-6ff5c5f58c-wf5r9                       1/1     Running     7 (65m ago)    40d     192.168.85.231   k8s-node01     <none>           <none>
krm                    krm-frontend-588ffd677b-clxdx                      1/1     Running     8 (65m ago)    40d     192.168.85.235   k8s-node01     <none>           <none>

# 模拟访问
[root@k8s-master01 eck]# while true;do curl 192.168.85.235;done

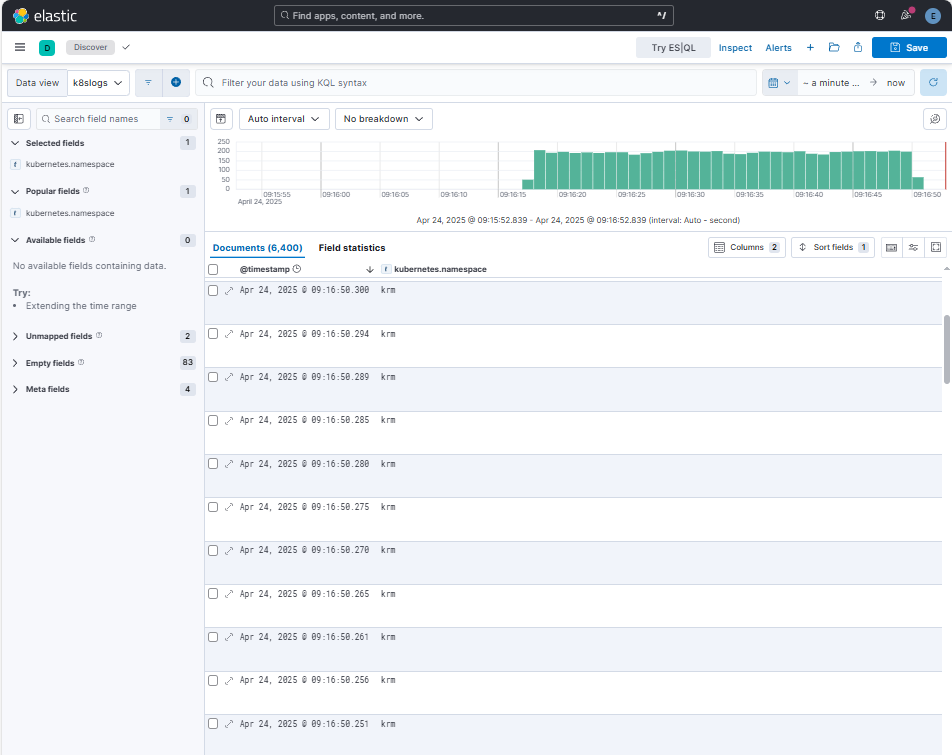

8、在搜索框中搜索namespace,选择kubernetes.namespace后，点击后面的【+】，查看krm命名空间下的日志信息，现在可以观察到日志信息

image-20250424091715450
