一、在K8s中从零落地日志收集平台¶

官方文档：https://www.elastic.co/docs/deploy-manage/deploy/cloud-on-k8s

3.1.1 ECK安装¶

参考链接：https://www.elastic.co/docs/deploy-manage/deploy/cloud-on-k8s/install-using-yaml-manifest-quickstart

说明：目前版本已经更新到3.0.0

1、安装ECK CRD

[root@k8s-master01 ~]# mkdir eck
[root@k8s-master01 ~]# cd eck/
[root@k8s-master01 eck]# kubectl create -f https://download.elastic.co/downloads/eck/2.16.0/crds.yaml

# 验证
[root@k8s-master01 eck]# kg -f crds.yaml
NAME                                                   CREATED AT
agents.agent.k8s.elastic.co                            2025-04-23T05:27:55Z
apmservers.apm.k8s.elastic.co                          2025-04-23T05:27:55Z
beats.beat.k8s.elastic.co                              2025-04-23T05:27:55Z
elasticmapsservers.maps.k8s.elastic.co                 2025-04-23T05:27:55Z
elasticsearchautoscalers.autoscaling.k8s.elastic.co    2025-04-23T05:27:55Z
elasticsearches.elasticsearch.k8s.elastic.co           2025-04-23T05:27:55Z
enterprisesearches.enterprisesearch.k8s.elastic.co     2025-04-23T05:27:55Z
kibanas.kibana.k8s.elastic.co                          2025-04-23T05:27:55Z
logstashes.logstash.k8s.elastic.co                     2025-04-23T05:27:55Z
stackconfigpolicies.stackconfigpolicy.k8s.elastic.co   2025-04-23T05:27:55Z

2、安装ECK Operator

# 下载文件
[root@k8s-master01 eck]# wget  https://download.elastic.co/downloads/eck/2.16.0/operator.yaml

# 替换
[root@k8s-master01 eck]# sed -i s#docker.elastic.co/eck/eck-operator:2.16.0#registry.cn-hangzhou.aliyuncs.com/github_images1024/eck-operator:2.16.0#g operator.yaml

# 验证
[root@k8s-master01 eck]# grep -ri "image:" operator.yaml
      - image: "registry.cn-hangzhou.aliyuncs.com/github_images1024/eck-operator:2.16.0

# 应用
[root@k8s-master01 eck]# kubectl apply -f operator.yaml

3、查看部署状态

# 查看pod
[root@k8s-master01 eck]# kgp -n elastic-system
NAME                 READY   STATUS    RESTARTS   AGE
elastic-operator-0   1/1     Running   0          20s

# 查看sts
[root@k8s-master01 eck]# kg sts -n  elastic-system
NAME               READY   AGE
elastic-operator   1/1     174m

4、查看CRD

[root@k8s-master01 eck]# kubectl get crd | grep elastic
agents.agent.k8s.elastic.co                            2025-04-23T05:27:55Z
apmservers.apm.k8s.elastic.co                          2025-04-23T05:27:55Z
beats.beat.k8s.elastic.co                              2025-04-23T05:27:55Z
elasticmapsservers.maps.k8s.elastic.co                 2025-04-23T05:27:55Z
elasticsearchautoscalers.autoscaling.k8s.elastic.co    2025-04-23T05:27:55Z
elasticsearches.elasticsearch.k8s.elastic.co           2025-04-23T05:27:55Z
enterprisesearches.enterprisesearch.k8s.elastic.co     2025-04-23T05:27:55Z
kibanas.kibana.k8s.elastic.co                          2025-04-23T05:27:55Z
logstashes.logstash.k8s.elastic.co                     2025-04-23T05:27:55Z
stackconfigpolicies.stackconfigpolicy.k8s.elastic.co   2025-04-23T05:27:55Z

3.1.2 在k8s中一键部署ES高可用集群¶

参考链接：https://www.elastic.co/docs/deploy-manage/deploy/cloud-on-k8s/elasticsearch-deployment-quickstart

接下来即可使用自定义资源 Elasticsearch 一键启动一个 ES 集群。

1、创建一个用于放置日志收集工具的 Namespace

[root@k8s-master01 eck]# kubectl create ns logging

2、创建一个定义 Elasticsearch 集群的 Yaml 文件

[root@k8s-master01 eck]# vim es-cluster.yaml
apiVersion: elasticsearch.k8s.elastic.co/v1
kind: Elasticsearch
metadata:
  name: es-cluster
spec:
  version: 8.17.0
  image: registry.cn-hangzhou.aliyuncs.com/github_images1024/elasticsearch:8.17.0
  nodeSets:
  - name: default
    count: 3
   #config:
   #  node.store.allow_mmap: false
   #  if persistent
   #volumeClaimTemplates:
   #  - metadata:
   #      name: elasticsearch-data # Do not change this name unless you set
   #up a volume mount for the data path.
   #    spec:
   #      accessModes:
   #        - ReadWriteOnce
   #      resources:
   #        requests:
   #          storage: 5Gi
   #      storageClassName: standard
   #  no persistent
    podTemplate:
      spec:
        volumes:
          - name: elasticsearch-data
            emptyDir: {}
        # 提升虚拟地址空间的默认值
        initContainers:
          - name: sysctl
            securityContext:
              privileged: true
              runAsUser: 0
            command: ['sh', '-c', 'sysctl -w vm.max_map_count=262144']

3、创建集群

[root@k8s-master01 eck]# kubectl create -f es-cluster.yaml -n logging

4、查看状态

# 查看pod
[root@k8s-master01 eck]# kgp -n logging
NAME                      READY   STATUS    RESTARTS   AGE
es-cluster-es-default-0   1/1     Running   0          2m46s
es-cluster-es-default-1   1/1     Running   0          2m46s
es-cluster-es-default-2   1/1     Running   0          2m46s

# 查看ES
[root@k8s-master01 eck]# kubectl get es -n logging
NAME         HEALTH   NODES   VERSION   PHASE   AGE
es-cluster   green    3       8.17.0    Ready   2m48s

# 定义变量
[root@k8s-master01 eck]# PASSWORD=$(kubectl -n logging get secret es-cluster-es-elastic-user \
  -o go-template='{{.data.elastic | base64decode}}')

# 输出变量值
[root@k8s-master01 eck]# echo $PASSWORD
8kry7pp6hWP0Vd65z688Pni6

# 查看svc地址为10.110.104.195
[root@k8s-master01 eck]# kubectl get svc -n logging | grep es-cluster-es-http
es-cluster-es-http            ClusterIP   10.110.104.195   <none>        9200/TCP   6m25s

# 查看集群健康状态
[root@k8s-master01 eck]# curl -u "elastic:$PASSWORD" https://10.110.104.195:9200/_cluster/health?pretty -k
{
  "cluster_name" : "es-cluster",
  "status" : "green",
  "timed_out" : false,
  "number_of_nodes" : 3,
  "number_of_data_nodes" : 3,
  "active_primary_shards" : 2,
  "active_shards" : 4,
  "relocating_shards" : 0,
  "initializing_shards" : 0,
  "unassigned_shards" : 0,
  "unassigned_primary_shards" : 0,
  "delayed_unassigned_shards" : 0,
  "number_of_pending_tasks" : 0,
  "number_of_in_flight_fetch" : 0,
  "task_max_waiting_in_queue_millis" : 0,
  "active_shards_percent_as_number" : 100.0
}

3.1.3 在k8s中一键部署Kibana¶

参考链接：https://www.elastic.co/docs/deploy-manage/deploy/cloud-on-k8s/kibana-instance-quickstart

Elasticsearch 集群创建完成后，可以使用 Kibana 资源创建一个 Kibana 实例：

1、创建一个定义 Kibana 集群的 Yaml 文件

[root@k8s-master01 eck]# cat  kibana.yaml
apiVersion: kibana.k8s.elastic.co/v1
kind: Kibana
metadata:
  name: kibana
spec:
  version: 8.17.0
  image: registry.cn-hangzhou.aliyuncs.com/github_images1024/kibana:8.17.0
  count: 1
  elasticsearchRef:
    name: es-cluster
  http:
    service:
      spec:
        type: NodePort
    tls:
      selfSignedCertificate:
        disabled: true

2、创建kibana

[root@k8s-master01 eck]# kubectl create -f kibana.yaml -n logging

3、查看状态

# 查看kibana
[root@k8s-master01 eck]# kg kibana -n logging
NAME     HEALTH   NODES   VERSION   AGE
kibana   green    1       8.17.0    88m

# 查看pod
[root@k8s-master01 eck]# kubectl get po -n logging | grep kibana
kibana-kb-79f644d7d-sfpx6   1/1     Running   0          3m33s

# 查看svc
[root@k8s-master01 eck]# kubectl get svc -n logging | grep kibana
kibana-kb-http                NodePort    10.102.8.148     <none>        5601:30502/TCP   4m31s

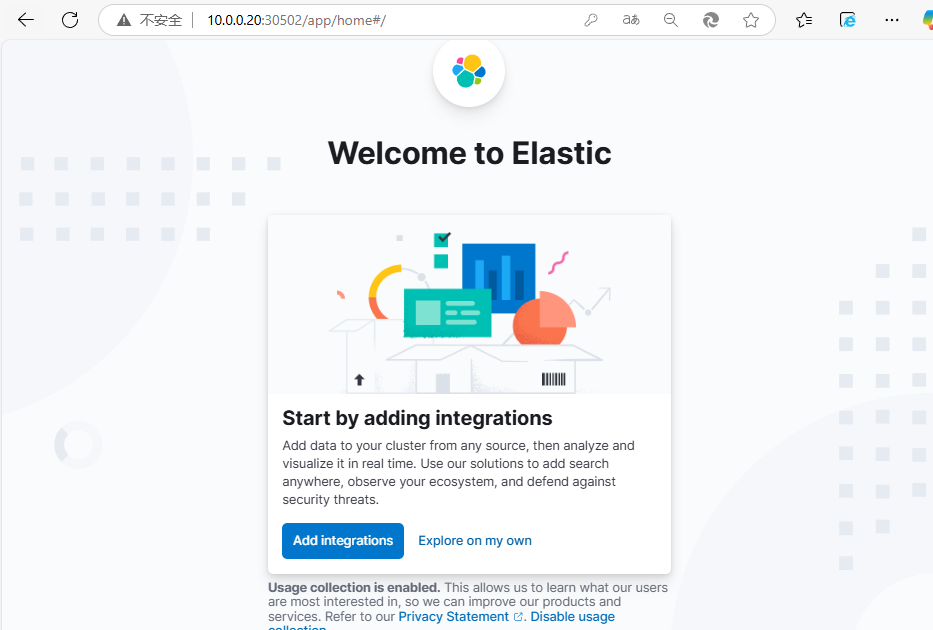

4、待 Pod 启动完成后，即可在浏览器中输入任意节点IP:30502访问 Kibana，用户名和密码和 ES 的一致(用户名为elastic，密码为8kry7pp6hWP0Vd65z688Pni6)

3.1.4 在K8s中一键部署Zookeeper集群¶

Zookeeper并不属于 ECK 的资源，所以可以使用 Helm 进行安装：

# Helm部署
[root@k8s-master01 ~]# cd eck/zookeeper/
[root@k8s-master01 zookeeper]# helm install zookeeper . -n logging

# 验证
[root@k8s-master01 zookeeper]# kgp -n logging | grep zookeeper
zookeeper-0                 1/1     Running   0          80s

3.1.5 在K8s中一键部署Kafka集群¶

Kafka 并不属于 ECK 的资源，所以可以使用 Helm 进行安装：

# Helm部署
[root@k8s-master01 ~]# cd eck/kafka/
[root@k8s-master01 kafka]# helm install kafka . -n logging

# 查看kafka的pod
[root@k8s-master01 kafka]# kgp -n logging | grep kafka
kafka-0                     1/1     Running   0          76s

# 查看kafka的svc
[root@k8s-master01 eck]# kg svc  -n logging | grep kafka
kafka                         ClusterIP   10.98.49.133     <none>        9092/TCP                     4m30s
kafka-headless                ClusterIP   None             <none>        9092/TCP,9093/TCP            4m30s

3.1.6 在K8s中一键部署Logstash集群¶

参考链接：https://www.elastic.co/docs/deploy-manage/deploy/cloud-on-k8s/quickstart-logstash

Logstash 主要用于消费 Kafka 中的数据，之后把数据写入到 ES 集群，接下来使用 Logstash资源创建 Logstash 集群

1、创建一个定义 Logstash 集群的 Yaml 文件

[root@k8s-master01 ~]# cd eck/
[root@k8s-master01 eck]# vim logstash.yaml
apiVersion: logstash.k8s.elastic.co/v1alpha1
kind: Logstash
metadata:
  name: logstash
spec:
  version: 8.17.0
  image: registry.cn-hangzhou.aliyuncs.com/github_images1024/logstash:8.17.0
  count: 1
  elasticsearchRefs:
    - clusterName: es-cluster
      name: es-cluster
  podTemplate:
    spec:
      volumes:
        - name: logstash-data
          emptyDir: {}
  pipelines:
    - pipeline.id: main
      config.string: |
        input {
          kafka {
            enable_auto_commit => true
            auto_commit_interval_ms => "1000"
            bootstrap_servers => "kafka:9092"
            topics => ["k8spodlogs"]
            codec => json
          }
        }
        output {
          elasticsearch {
            hosts => [ "https://es-cluster-es-http:9200" ]
            index => "k8spodlogs-%{+YYYY.MM.dd}"
            ssl_enabled => true
            user => "elastic"
            password => "8kry7pp6hWP0Vd65z688Pni6"
            ssl_certificate_authorities => "${ES_CLUSTER_ES_SSL_CERTIFICATE_AUTHORITY}"
          }
        }

2、应用

[root@k8s-master01 eck]# kubectl create -f logstash.yaml -n logging

3、状态查看

# 查看logstash
[root@k8s-master01 eck]# kg logstash -n logging
NAME       HEALTH   AVAILABLE   EXPECTED   AGE   VERSION
logstash   green    1           1          48m   8.17.0

# 查看pod
[root@k8s-master01 eck]# kgp -n logging | grep logstash
logstash-ls-0               1/1     Running   0          2m32s
