一、部署Kuboard

参考链接：https://kuboard.cn/install/v3/install-in-k8s.html#%E6%96%B9%E6%B3%95%E4%BA%8C-%E4%BD%BF%E7%94%A8-storageclass-%E6%8F%90%E4%BE%9B%E6%8C%81%E4%B9%85%E5%8C%96

1、在master01节点上创建存储目录

[root@master01 ~]# mkdir 11
[root@master01 ~]# cd 11

2、在master01节点上修改kuboard-v3.yaml文件

[root@master01 11]# vim kuboard-v3.yaml
#修改第16行内容
  KUBOARD_ENDPOINT: 'http://<kuboard-endpoint>:30080'
#修改第111行内容
      storageClassName: nfs-storage
#第122行内容下面新增namespace配置信息
  namespace: kuboard
#修改第125行内容
  storageClassName: nfs-storage

#完整配置文件
[root@master01 11]# egrep -v "#|^$" kuboard-v3.yaml
---
apiVersion: v1
kind: Namespace
metadata:
  name: kuboard
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: kuboard-v3-config
  namespace: kuboard
data:
  KUBOARD_ENDPOINT: 'http://<kuboard-endpoint>:30080'
  KUBOARD_AGENT_SERVER_UDP_PORT: '30081'
  KUBOARD_AGENT_SERVER_TCP_PORT: '30081'
  KUBOARD_AGENT_KEY: <your-agent-key>

---
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: kuboard-etcd
  namespace: kuboard
  labels:
    app: kuboard-etcd
spec:
  serviceName: kuboard-etcd
  replicas: 3
  selector:
    matchLabels:
      app: kuboard-etcd
  template:
    metadata:
      name: kuboard-etcd
      labels:
        app: kuboard-etcd
    spec:
      containers:
      - name: kuboard-etcd
        image: swr.cn-east-2.myhuaweicloud.com/kuboard/etcd:v3.4.14
        ports:
        - containerPort: 2379
          name: client
        - containerPort: 2380
          name: peer
        env:
        - name: KUBOARD_ETCD_ENDPOINTS
          value: >-
            kuboard-etcd-0.kuboard-etcd:2379,kuboard-etcd-1.kuboard-etcd:2379,kuboard-etcd-2.kuboard-etcd:2379
        volumeMounts:
        - name: data
          mountPath: /data
        command:
          - /bin/sh
          - -c
          - |
            PEERS="kuboard-etcd-0=http://kuboard-etcd-0.kuboard-etcd:2380,kuboard-etcd-1=http://kuboard-etcd-1.kuboard-etcd:2380,kuboard-etcd-2=http://kuboard-etcd-2.kuboard-etcd:2380"
            exec etcd --name ${HOSTNAME} \
              --listen-peer-urls http://0.0.0.0:2380 \
              --listen-client-urls http://0.0.0.0:2379 \
              --advertise-client-urls http://${HOSTNAME}.kuboard-etcd:2379 \
              --initial-advertise-peer-urls http://${HOSTNAME}:2380 \
              --initial-cluster-token kuboard-etcd-cluster-1 \
              --initial-cluster ${PEERS} \
              --initial-cluster-state new \
              --data-dir /data/kuboard.etcd
  volumeClaimTemplates:
  - metadata:
      name: data
    spec:
      storageClassName: nfs-storage
      accessModes: [ "ReadWriteMany" ]
      resources:
        requests:
          storage: 5Gi
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: kuboard-data-pvc
  namespace: kuboard
spec:
  storageClassName: nfs-storage
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 10Gi
---
apiVersion: v1
kind: Service
metadata:
  name: kuboard-etcd
  namespace: kuboard
spec:
  type: ClusterIP
  ports:
  - port: 2379
    name: client
  - port: 2380
    name: peer
  selector:
    app: kuboard-etcd
---
apiVersion: apps/v1
kind: Deployment
metadata:
  annotations:
    deployment.kubernetes.io/revision: '9'
    k8s.kuboard.cn/ingress: 'false'
    k8s.kuboard.cn/service: NodePort
    k8s.kuboard.cn/workload: kuboard-v3
  labels:
    k8s.kuboard.cn/name: kuboard-v3
  name: kuboard-v3
  namespace: kuboard
spec:
  replicas: 1
  selector:
    matchLabels:
      k8s.kuboard.cn/name: kuboard-v3
  template:
    metadata:
      labels:
        k8s.kuboard.cn/name: kuboard-v3
    spec:
      containers:
        - env:
            - name: KUBOARD_ETCD_ENDPOINTS
              value: >-
                kuboard-etcd-0.kuboard-etcd:2379,kuboard-etcd-1.kuboard-etcd:2379,kuboard-etcd-2.kuboard-etcd:2379
            - name: KUBOARD_INSECURE
              value: "true"
          envFrom:
            - configMapRef:
                name: kuboard-v3-config
          image: 'swr.cn-east-2.myhuaweicloud.com/kuboard/kuboard:v3'
          imagePullPolicy: Always
          name: kuboard
          volumeMounts:
            - mountPath: "/data"
              name: kuboard-data
      volumes:
      - name: kuboard-data
        persistentVolumeClaim:
          claimName: kuboard-data-pvc
---
apiVersion: v1
kind: Service
metadata:
  annotations:
    k8s.kuboard.cn/workload: kuboard-v3
  labels:
    k8s.kuboard.cn/name: kuboard-v3
  name: kuboard-v3
  namespace: kuboard
spec:
  ports:
    - name: webui
      nodePort: 30080
      port: 80
      protocol: TCP
      targetPort: 80
    - name: agentservertcp
      nodePort: 30081
      port: 10081
      protocol: TCP
      targetPort: 10081
    - name: agentserverudp
      nodePort: 30081
      port: 10081
      protocol: UDP
      targetPort: 10081
  selector:
    k8s.kuboard.cn/name: kuboard-v3
  sessionAffinity: None
  type: NodePort

3、在master01节点上应用kuboard-v3.yaml文件

[root@master01 11]# kubectl apply -f kuboard-v3.yaml

验证

[root@master01 11]# kubectl get -f kuboard-v3.yaml
NAME                STATUS   AGE
namespace/kuboard   Active   25s

NAME                          DATA   AGE
configmap/kuboard-v3-config   5      25s

NAME                            READY   AGE
statefulset.apps/kuboard-etcd   3/3     25s

NAME                                     STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   AGE
persistentvolumeclaim/kuboard-data-pvc   Bound    pvc-8fee67a8-395a-4ed2-bc36-8101ab5ae2fa   10Gi       RWO            nfs-storage    25s

NAME                   TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)             AGE
service/kuboard-etcd   ClusterIP   192.168.27.254   <none>        2379/TCP,2380/TCP   25s

NAME                         READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/kuboard-v3   1/1     1            1           25s

NAME                 TYPE       CLUSTER-IP        EXTERNAL-IP   PORT(S)                                        AGE
service/kuboard-v3   NodePort   192.168.115.105   <none>        80:30080/TCP,10081:30081/TCP,10081:30081/UDP   25s

4、浏览器输入http://10.0.0.60:30080/进行访问，账号密码为admin/Kuboard123

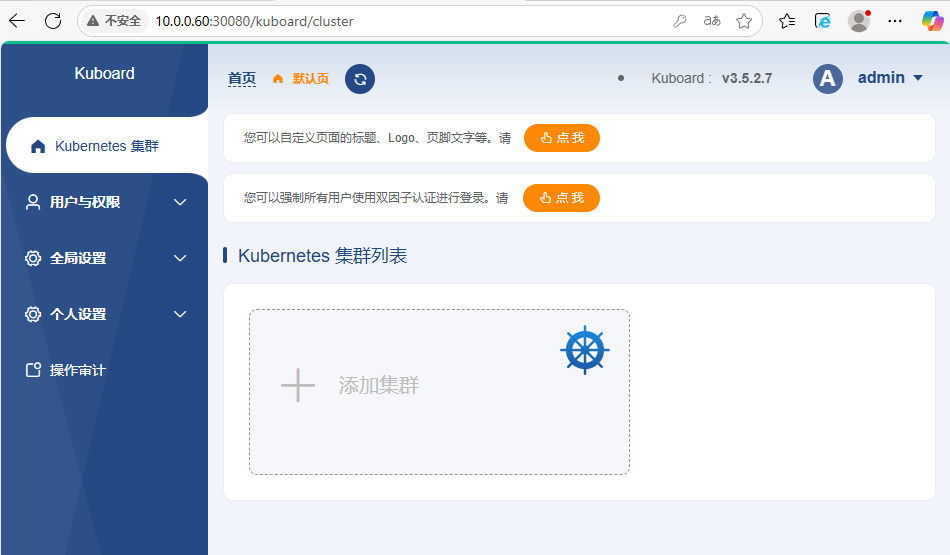

image-20250602201931871

5、添加集群

点击【添加集群】

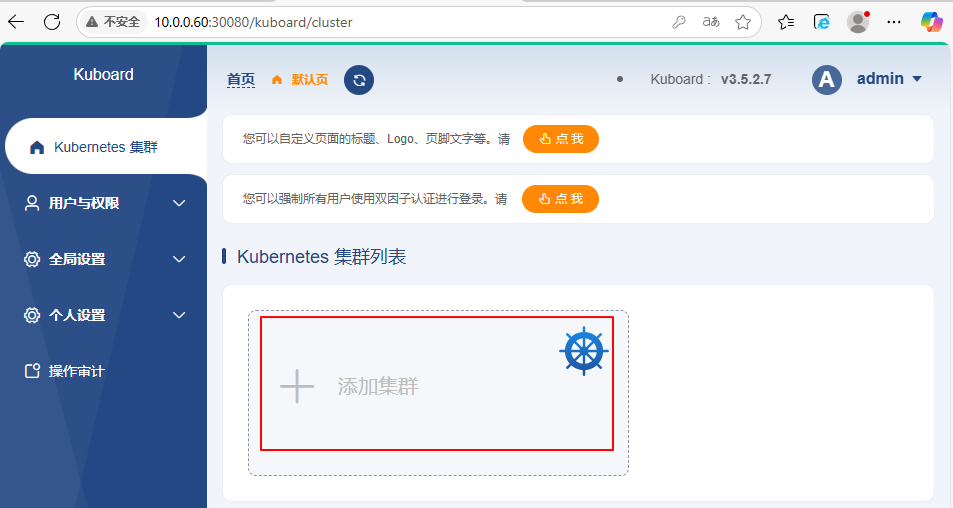

image-20250602202026210

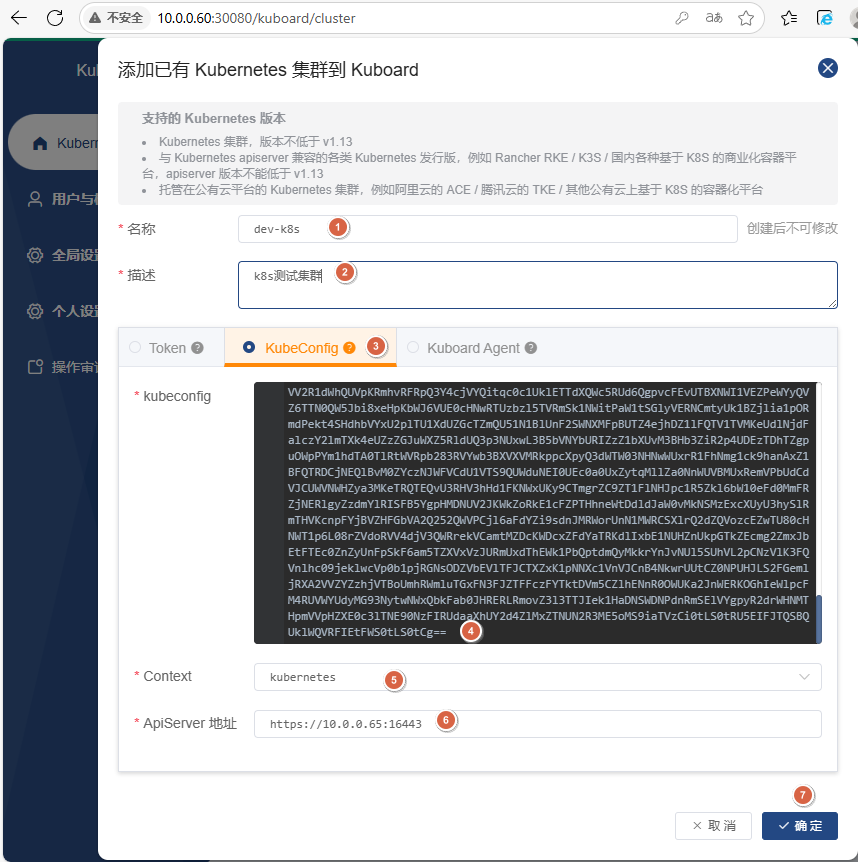

定义集群信息

  • 名称：dev-k8s

  • 描述：k8s测试集群

  • kubeconfig

yaml [root@master01 11]# cat /root/.kube/config apiVersion: v1 clusters: - cluster: certificate-authority-data: <redacted-ca-data> server: https://<master-real-ip>:16443 name: kubernetes contexts: - context: cluster: kubernetes user: kubernetes-admin name: kubernetes-admin@kubernetes current-context: kubernetes-admin@kubernetes kind: Config preferences: {} users: - name: kubernetes-admin user: client-certificate-data: <redacted-client-certificate-data> client-key-data: <redacted-client-key-data>

  • Context：通过kubeconfig自动生成

  • ApiServer地址：https://<master-real-ip>:16443

image-20250602205257112

6、请选择访问集群时所用的身份

  • 使用ServiceAccount kuboard-admin

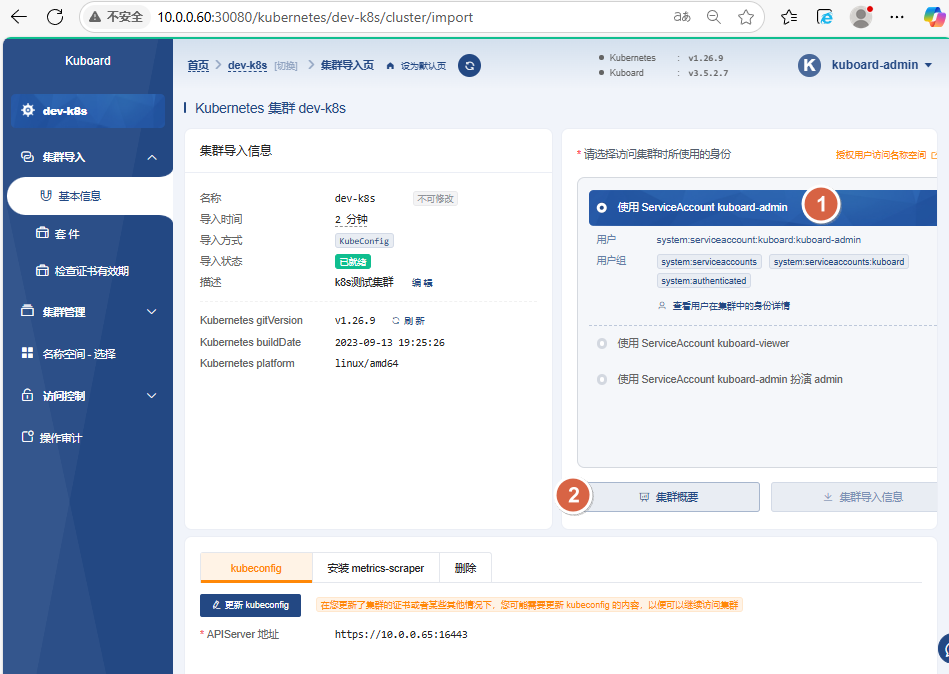

image-20250602205516417

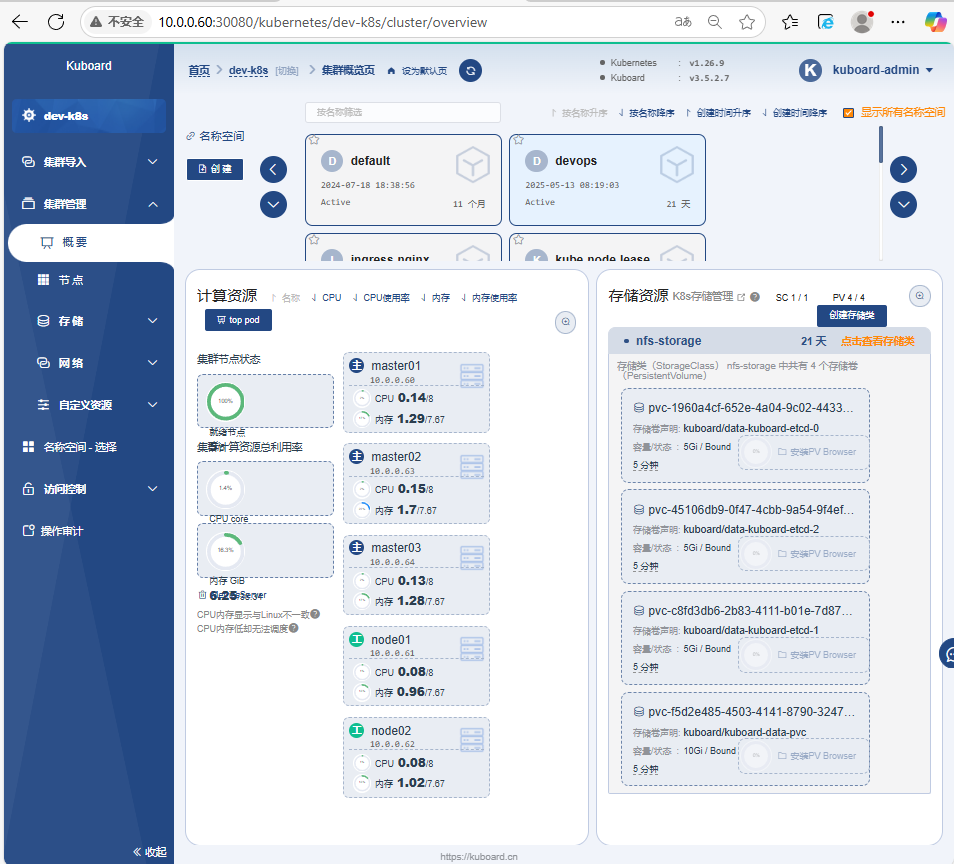

image-20250602205537252

二、部署遇到的问题

2.1 问题信息

K8s接入Kuboard-v3提示如下信息：

【Kuboard 不能连接 APIServer】 Post "https://<master-real-ip>:16443/apis/authorization.k8s.io/v1/selfsubjectrulesreviews": x509: certificate signed by unknown authority【您可以尝试在此处使用 Master 节点的真实 IP】

2.2 问题处理

修改kuboard-v3.yaml文件，添加如下配置信息

            - name: KUBOARD_INSECURE
              value: "true"

完整配置文件

[root@master01 11]# egrep -v "#|^$" kuboard-v3.yaml
---
apiVersion: v1
kind: Namespace
metadata:
  name: kuboard
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: kuboard-v3-config
  namespace: kuboard
data:
  KUBOARD_ENDPOINT: 'http://<kuboard-endpoint>:30080'
  KUBOARD_AGENT_SERVER_UDP_PORT: '30081'
  KUBOARD_AGENT_SERVER_TCP_PORT: '30081'
  KUBOARD_AGENT_KEY: <your-agent-key>

---
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: kuboard-etcd
  namespace: kuboard
  labels:
    app: kuboard-etcd
spec:
  serviceName: kuboard-etcd
  replicas: 3
  selector:
    matchLabels:
      app: kuboard-etcd
  template:
    metadata:
      name: kuboard-etcd
      labels:
        app: kuboard-etcd
    spec:
      containers:
      - name: kuboard-etcd
        image: swr.cn-east-2.myhuaweicloud.com/kuboard/etcd:v3.4.14
        ports:
        - containerPort: 2379
          name: client
        - containerPort: 2380
          name: peer
        env:
        - name: KUBOARD_ETCD_ENDPOINTS
          value: >-
            kuboard-etcd-0.kuboard-etcd:2379,kuboard-etcd-1.kuboard-etcd:2379,kuboard-etcd-2.kuboard-etcd:2379
        volumeMounts:
        - name: data
          mountPath: /data
        command:
          - /bin/sh
          - -c
          - |
            PEERS="kuboard-etcd-0=http://kuboard-etcd-0.kuboard-etcd:2380,kuboard-etcd-1=http://kuboard-etcd-1.kuboard-etcd:2380,kuboard-etcd-2=http://kuboard-etcd-2.kuboard-etcd:2380"
            exec etcd --name ${HOSTNAME} \
              --listen-peer-urls http://0.0.0.0:2380 \
              --listen-client-urls http://0.0.0.0:2379 \
              --advertise-client-urls http://${HOSTNAME}.kuboard-etcd:2379 \
              --initial-advertise-peer-urls http://${HOSTNAME}:2380 \
              --initial-cluster-token kuboard-etcd-cluster-1 \
              --initial-cluster ${PEERS} \
              --initial-cluster-state new \
              --data-dir /data/kuboard.etcd
  volumeClaimTemplates:
  - metadata:
      name: data
    spec:
      storageClassName: nfs-storage
      accessModes: [ "ReadWriteMany" ]
      resources:
        requests:
          storage: 5Gi
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: kuboard-data-pvc
  namespace: kuboard
spec:
  storageClassName: nfs-storage
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 10Gi
---
apiVersion: v1
kind: Service
metadata:
  name: kuboard-etcd
  namespace: kuboard
spec:
  type: ClusterIP
  ports:
  - port: 2379
    name: client
  - port: 2380
    name: peer
  selector:
    app: kuboard-etcd
---
apiVersion: apps/v1
kind: Deployment
metadata:
  annotations:
    deployment.kubernetes.io/revision: '9'
    k8s.kuboard.cn/ingress: 'false'
    k8s.kuboard.cn/service: NodePort
    k8s.kuboard.cn/workload: kuboard-v3
  labels:
    k8s.kuboard.cn/name: kuboard-v3
  name: kuboard-v3
  namespace: kuboard
spec:
  replicas: 1
  selector:
    matchLabels:
      k8s.kuboard.cn/name: kuboard-v3
  template:
    metadata:
      labels:
        k8s.kuboard.cn/name: kuboard-v3
    spec:
      containers:
        - env:
            - name: KUBOARD_ETCD_ENDPOINTS
              value: >-
                kuboard-etcd-0.kuboard-etcd:2379,kuboard-etcd-1.kuboard-etcd:2379,kuboard-etcd-2.kuboard-etcd:2379
            - name: KUBOARD_INSECURE
              value: "true"
          envFrom:
            - configMapRef:
                name: kuboard-v3-config
          image: 'swr.cn-east-2.myhuaweicloud.com/kuboard/kuboard:v3'
          imagePullPolicy: Always
          name: kuboard
          volumeMounts:
            - mountPath: "/data"
              name: kuboard-data
      volumes:
      - name: kuboard-data
        persistentVolumeClaim:
          claimName: kuboard-data-pvc
---
apiVersion: v1
kind: Service
metadata:
  annotations:
    k8s.kuboard.cn/workload: kuboard-v3
  labels:
    k8s.kuboard.cn/name: kuboard-v3
  name: kuboard-v3
  namespace: kuboard
spec:
  ports:
    - name: webui
      nodePort: 30080
      port: 80
      protocol: TCP
      targetPort: 80
    - name: agentservertcp
      nodePort: 30081
      port: 10081
      protocol: TCP
      targetPort: 10081
    - name: agentserverudp
      nodePort: 30081
      port: 10081
      protocol: UDP
      targetPort: 10081
  selector:
    k8s.kuboard.cn/name: kuboard-v3
  sessionAffinity: None
  type: NodePort

重新应用

[root@master01 11]#k delete -f   kuboard-v3.yaml
[root@master01 11]#kaf   kuboard-v3.yaml
